ASROCK Radeon RX 9070 XT Steel Legend Dark 16G

The ASROCK Radeon RX 9070 XT Steel Legend Dark 16G graphics card with 16 GB of RAM is exactly what you're looking for, with a clock speed of 20000 MHz. With this amount of RAM, the 256Bit bus, and a core speed of 2400 MHz The graphics card has the PCI Express x16 5,0 interface, and it has 4 ports for the connection of a screen. In the case of this graphics card, the manufacturer chose the DisplayPort 2,1a and HDMI 2,1b interface for the connection of a monitor. The active cooling on this graphics card delivers minimal temperatures, even under load.

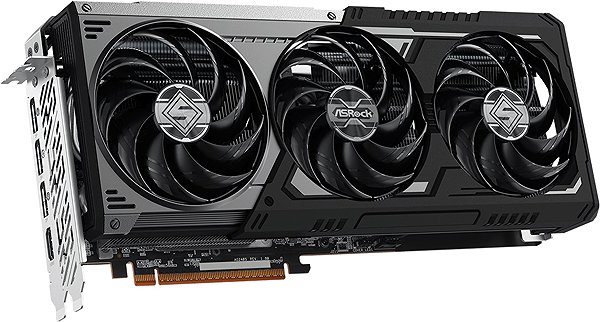

Graphics Card ASROCK Radeon RX 9070 XT Steel Legend Dark 16G ...

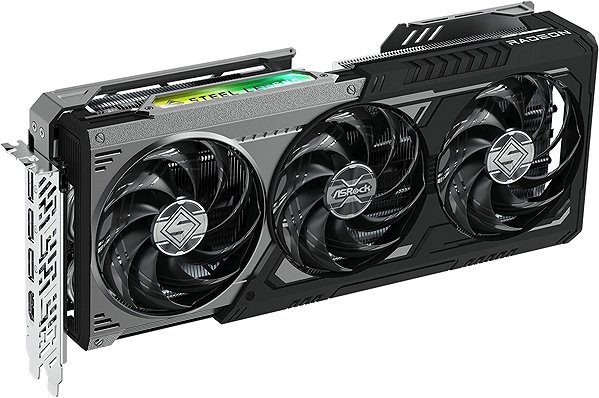

Graphics Card ASROCK Radeon RX 9070 XT Steel Legend Dark 16G ...

ASROCK Radeon RX 9070 XT Steel Legend Dark 16G Gaming Graphics Card Key Features

  • Graphics card features RX 9070 XT graphics chip with 4 nm production technology
  • ASROCK Radeon RX 9070 XT Steel Legend Dark 16G graphics card allows you to connect 4 monitors
  • Recommended PSU performance of at least: 800 W
  • AMD Radeon RX 9070 XT graphics card random access memory: 16 GB
  • Graphics card cooling: Active
  • Graphics card display port: DisplayPort 2,1a and HDMI 2,1b

Active cooling technology, such as that, which is found in this graphics card, is popular chiefly because it's a reliable way to keep the temperature low. The Three slots cooling system on this graphics card features 3 fans and modulates its performance depending on the current processing load.

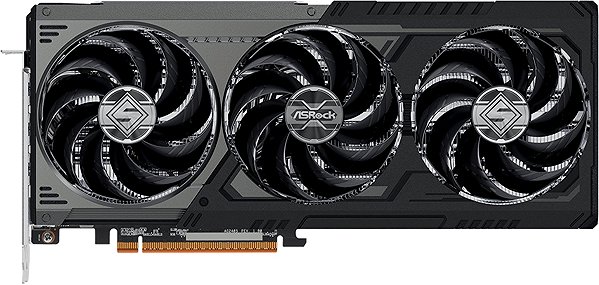

Graphics Card ASROCK Radeon RX 9070 XT Steel Legend Dark 16G ...

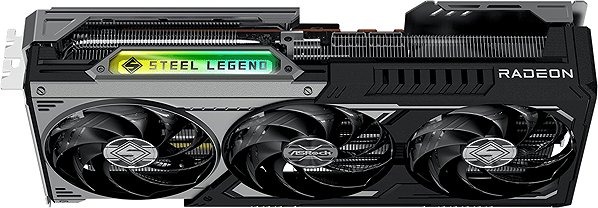

Graphics Card ASROCK Radeon RX 9070 XT Steel Legend Dark 16G ...

Graphics Card Has 16 GB GDDR6 System Memory

The ASROCK GDDR6 type memory, which is on this graphics card, is the latest successor to GDDR5. Compared to GDDR5, it provides greater capacity and two times better performance. In the future, this type of memory is expected to dominate the mainstream of graphics cards.

Specifications

Dimensions

Width 298 mm
Height 58 mm
Depth 131 mm

AI

Total number of TOPS 0

Chip

Chip manufacturer AMD Radeon
Model designation RX 9070 XT
Graphics processor Navi 48
Chip architecture RDNA 4.0
Number of stream processors 4,096×
Production technology 4 nm

Performance & usage

Use Game playing

Memory

VRAM capacity 16 GB
Memory type GDDR6
Bus width 256-Bit

Frequency

Core frequency 2,400 MHz
Core clock speed (Boost clock) 2,970 MHz
Memory frequency 20,000 MHz (20 GHz)
Effective memory clock (bandwidth) 20 Gbps

Interface

PC connection PCI Express x16 5.0
Bus interface PCIe 5.0 x16
Monitor connection DisplayPort 2.1a, HDMI 2.1b

Technology

DirectX version 12 Ultimate

Cooling system

Cooling type Active
Cooling size Three slots
number of fans 3 ×

Consumption

Auxiliary power supply 2× 8-pin
Recommended power sources 800 W
