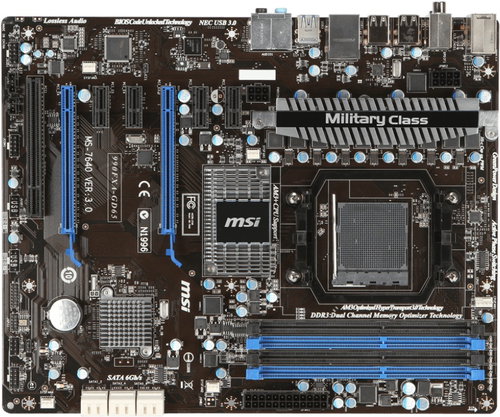

MSI 990FX-GD65

Motherboard higher class destination upcoming 32nm processors AMD FX series based on a completely new architecture Bulldozer. It is equipped with the most reliable Military Class II components, offers high potential of overclocking solution to multigrafické AMD CrossFireX and NVIDIA SLI and is accompanied by lots of practical and useful features for every user, from beginner to extreme overclockers. Compared to high-endovému model 990FX-GD80 offers "only" 2 slots to store graphics card, its interface is missing FireWire and eSATA and audio subsystem does not TruStudioPRO THX certification.
The board is implemented AMD 990FX chipset. This is the highest chipset from the new 9th series is designed primarily for processors AMD FX series. But they also understand as well as with current models from the Phenom II, Athlon II and Sempron well as present AM3 + socket. You are free to do so the new album yet save your current processor of these lines, while ensuring future compatibility of upcoming 32nm processors (reverse compatibility is not supported). Compared to the previous 890FX chipset his follower now supports newer HyperTransport 3.1 bus with high speed connections and SLI graphics cards NVIDIA.
Especially beginners in the field of performance increase will welcome special feature called OC Genie II. This is a very easy way to improve performance by 250% at the touch of a button. Automatically to the optimum processor and memory overclocking without having to make his way through the settings in the BIOS or using other complementary tools.
Specifications:
Supported Processors:
Series: AMD FX (Bulldozer, 32nm); Phenom II X6/X4/X3/X2, Athlon II X4/X3/X2; Sempron
Socket: AM3 +
Chipset:
North Bridge: AMD 990FX
South Bridge: AMD SB950
FSB:
HyperTransport 3.1
2.6 GHz
Memory:
Type: DDR3
Slot: 4x DIMM
Frequency: 800/1066/1333/1600/1800 (OC)/2133 (OC) MHz
Connection mode: Dual-channel
Max. Capacity: 32 GB
Expansion Slots:
2 x PCI Express 2.0 x16
4x PCI Express 2.0 x1
1x PCI
Video:
The need for a separate graphics card
Support for AMD CrossFireX
Support for NVIDIA SLI
Audio:
Realtek ALC892
7.1 HD audio
192 kHz/24-bit
LAN:
Realtek RTL8111E
10/100/1000 Mbit/s
Internal interface:
6x SATA III (6 Gbit/s, RAID 0/1/5/10)
2x USB 2.0 connectors (for 4 additional USB 2.0 ports)
1 x IEEE 1394 (FireWire) connector
1x COM connector
1x S/PDIF output connector
External interfaces:
1x PS/2 (mouse/keyboard combo port)
1x coaxial S/PDIF output
1x optical S/PDIF output
8x USB 2.0
2x USB 3.0
1x RJ-45
6x audio jack
Power:
1x 24-pin ATX connector
1x 8-pin 12V connector
Design:
ATX
Dimensions:
30.5 x 24.4 cm
