EVGA GeForce GTX 1070 ACX 3.0

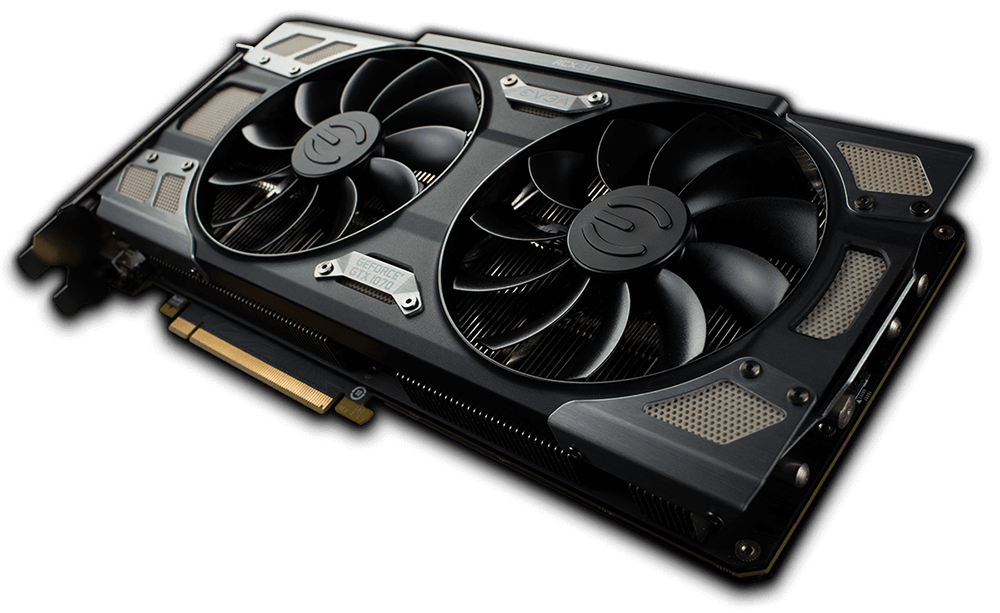

EVGA GeForce GTX 1070 ACX 3.0 - Graphics Card - Main image
Show alternatives
Product accessories

Don't like the alternatives?

Choose from the full offer

Graphics Cards Graphics Cards EVGA

EVGA GeForce GTX 1070 ACX 3.0

GeForce GTX 1070

GeForce GTX 1070

Zcela nová modelová řada společnosti NVIDIA přináší dosud nepoznanou sílu grafického výkonu i ve 4K rozlišení.

Nová úroveň hraní

16Nm core

Úplně nové jádro Pascal GP104 se skládá ze 7,2 miliard tranzistorů, které běží na o poznání vyšších taktech než předchozí generace.

VR ready

support for VR

Simultánní výpočet více pohledů na jednu scénu dopomůže ke skvělým výsledkům ve virtuální realitě.

Herní zážitky ve 4K

Modern platform that is second to none

Graphics core Pascal GP104 has Tumi just 1,920 CUDA cores, supplemented by 120 texture units. The basic cycle of the core of the model is set to 1506 MHz, but in Boost mode flips up to 1683 MHz.

Virtual reality has never been so close

GeForce GTX 1070 is fully prepared to support the virtual reality that offers much higher performance than previous generations. Combination of 256-bit bus and operating fast GDDR5 memory type provides a data throughput of up to 256 GB / s.

Přímá podpora VR

Peak heat sink allows high overclocking

Graphics card EVGA GeForce GTX 1070 ACX 3.0 cooler is equipped with an advanced ACX 3.0, which is pimped to the last detail. For example, a wide heat-pipe tube distributes the heat into a large aluminum fins. The power supply in this case take care of a 8-pin connector. The first tests of this model by 10% over the GeForce GTX 980 Ti. However, with significantly better operating conditions and attractive price.

Specifications

Dimensions

Width 266.7 mm
Height 111.15 mm

Chip

Model designation GTX 1070
Number of stream processors 1,920×
Production technology 16 nm

Performance & usage

Use Game playing

Memory

Memory type GDDR5
Bus width 256-Bit

Frequency

Core frequency 1,506 MHz
Memory frequency 8,008 MHz (8.01 GHz)

Interface

PC connection PCI Express x16 3.0
Monitor connection DVI
Number of outputs 5

Technology

Special graphics card features GeForce VR-Ready
DirectX version 12

Cooling system

Cooling type Active
Cooling size Dual-slot

Consumption

TDP 150 W
Auxiliary power supply 1× 8-pin
Recommended power sources 500 W
Graphics Cards Graphics Cards EVGA All categories
Previous Other
Code:  EV210e1
Links: Producer's Website:
