Socket and chipset
Socket
Intel LGA1700
Chipset
Intel H610
Format & functions
Motherboard form factor
mATX (Micro ATX)
Basic functions
Integrated sound card, M.2 , PCI Express 4.0, For CPU with integrated GPU, Serial ATA III
Memory
Design
DIMM
Memory type
DDR4
Number of RAM slots
2 ×
Connection Mode
dual-channel
Max. frequency (OC)
3,200 MHz
Advanced parameters
Sound card type
Realtek ALC897
Number of sound card channels
8
Connectors

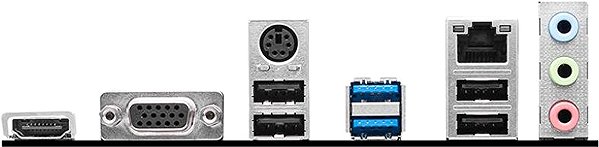

External
Jack, PS/2, RJ-45 (LAN) 1Gbps, USB 2.0, USB 3.2 Gen 1, VGA (D-Sub), HDMI 2.1
Internal
COM header, Serial ATA III, TPM header, M.2 PCIe 3.0, PCIe 4.0 x16, PCIe 3.0 x1
PCI express x16
1×
PCI express x1
1×
USB 2.0
4×
USB 3.2 Gen 1 (USB 3.0)
2×
M.2 slots
1×
Serial ATA III
4×
Series
Series
MSI Pro
Compatibility
Kompatibilní generace procesoru
14. generace Intel, 13. generace Intel, 12. generace Intel
