MSI MAG B860 TOMAHAWK WIFI

The MSI motherboard is built on the Intel B860 chipset, and it uses the Intel 1851 socket to accommodate the CPU. And, of course, it also has a sound card made for 8,0 channels. You can use the network connection module with the practical Wi-Fi connection support. It's quite a large motherboard for high-range PC configs, which require complex cooling. For this particular motherboard, you will need a compatible ATX format PC case.

MSI MAG B860 TOMAHAWK WIFI Motherboard Key Features

Intel 1851 socket and Intel B860 chipset
MSI MAG B860 TOMAHAWK WIFI size: ATX
Integrated audio card for 8,0 channels
DDR5 computer RAM type with DIMM design
The motherboard can accommodate 4 × dual-channel memory modules

MSI MAG B860 TOMAHAWK WIFI Motherboard Connectivity

RAM is absolutely crucial, so this MSI motherboard has 4 RAM slots. You can make use of DDR5 type DIMM operating memory. You can connect them in dual-channel mode. The motherboard supports modules with a clock speed of up to 8600 MHz.

MSI MAG B860 TOMAHAWK WIFI Connectivity

The motherboard is made for 2 graphics cards with PCI Express 16x slots. The internal interface includes a total of 3 popular M.2 slots. You'll also be happy to find it has TPM for extra security, an RGB LED Header, and Thunderbolt

The motherboard comes with a built-in Realtek ALC897 sound card

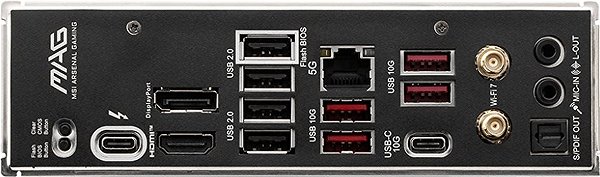

External communication interfaces: Jack, S/PDIF , USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2, RJ-45 (LAN) 5Gbps, Thunderbolt 4, HDMI 2.1 and DisplayPort 1.4
Internal interfaces: RGB LED Header, Thunderbolt header, TPM header, USB 2.0 header, USB 3.2 Gen 1 header, USB-C 3.2 Gen 2 header, M.2 PCIe 5.0, PCIe 5.0 x16, PCIe 4.0 x4, PCIe 4.0 x1 and Serial ATA III
The motherboard supports RAM modules with a clock speed of up to 8600 MHz
Serial ATA III: 4 ×

Specifications

Socket and chipset

Socket Intel 1851

Chipset Intel B860

Format & functions

Motherboard form factor ATX

Basic functions Bluetooth, Integrated network card, Integrated sound card, PCI Express 5.0, For CPU with integrated GPU, Wi-Fi

Memory

Memory type DDR5

Number of RAM slots 4 ×

Max. frequency (OC) 8,600 MHz

Design DIMM

Connection Mode dual-channel

Advanced parameters

Sound card type Realtek ALC897

Number of sound card channels 8.0

Connectors

External Jack, S/PDIF, USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2, RJ-45 (LAN) 5Gbps, Thunderbolt 4, HDMI 2.1, DisplayPort 1.4

Internal RGB LED Header, Thunderbolt header, TPM header, USB 2.0 header, USB 3.2 Gen 1 header, USB-C 3.2 Gen 2 header, M.2 PCIe 5.0, PCIe 5.0 x16, PCIe 4.0 x4, PCIe 4.0 x1, Serial ATA III

PCI express x16 2×

PCI express x1 1×

USB 2.0 4×

USB 3.1 (3.1 gen2) 5×

ThunderBolt 1×

M.2 slots 3×

Serial ATA III 4×

Series

Series MSI Gaming

Compatibility

Compatible processor generation Core Ultra Series 2

Colour

Colour Black
