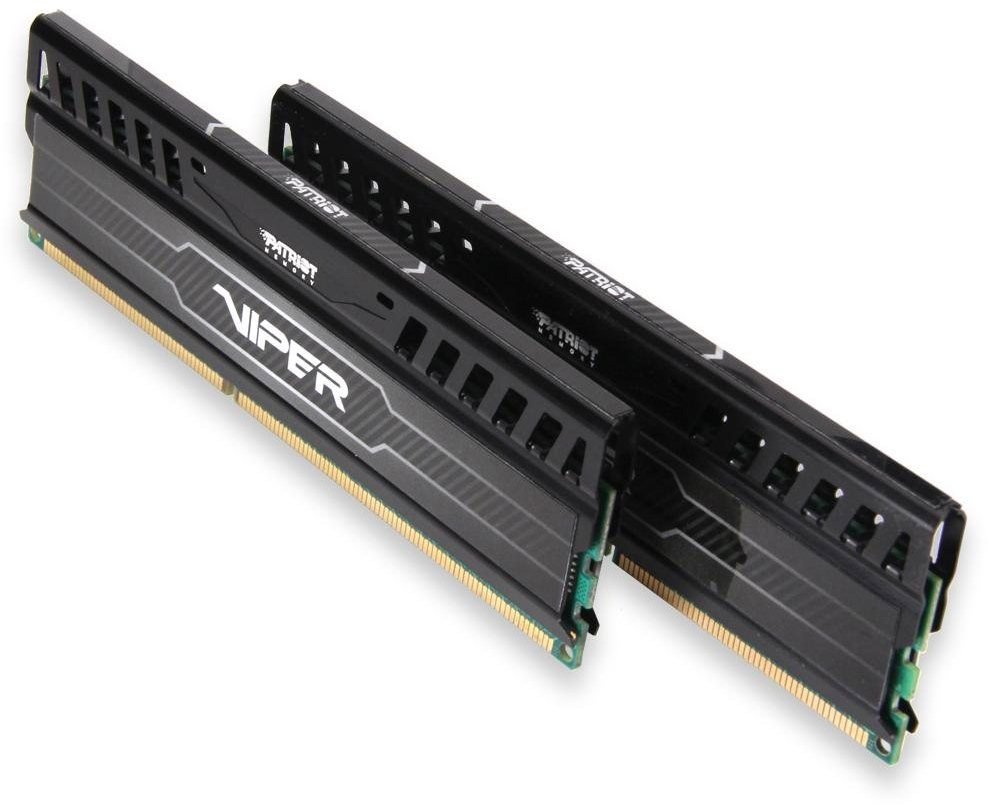

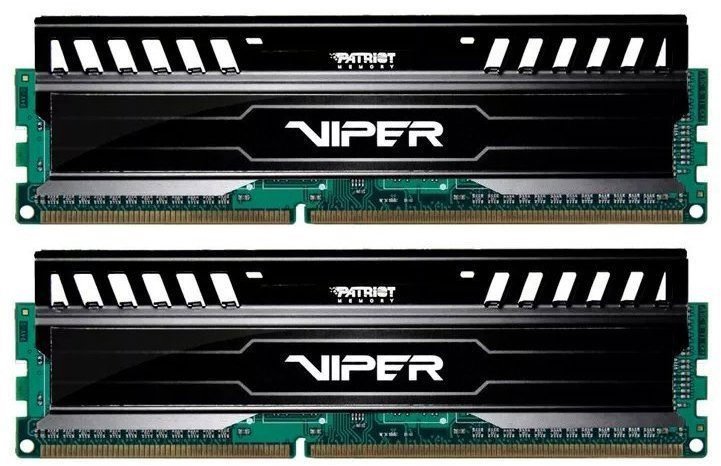

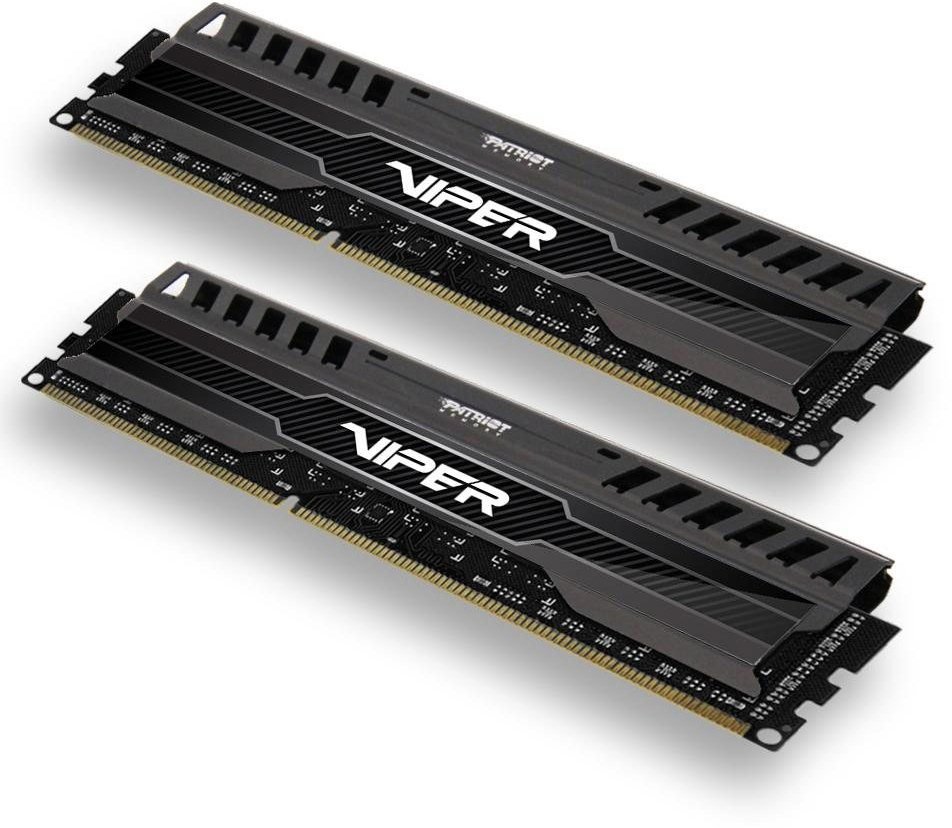

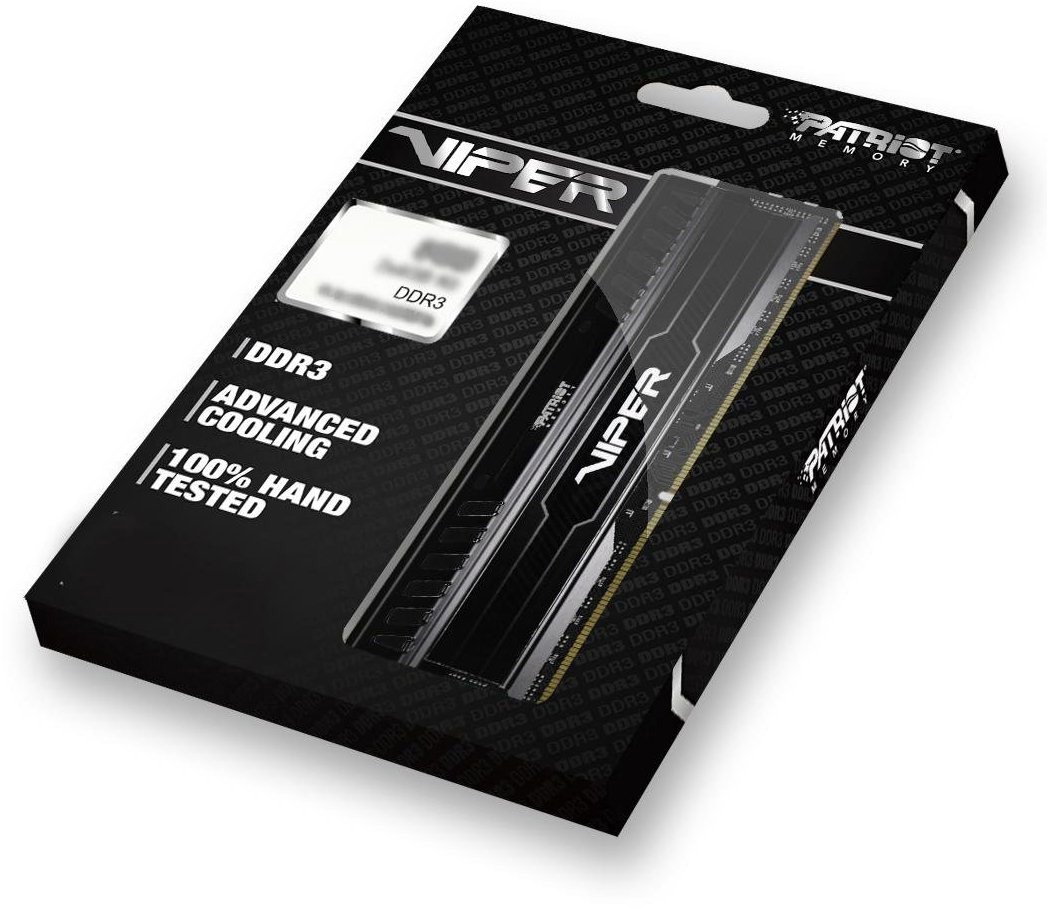

Patriot Viper 3 Black Mamba 16GB KIT DDR3 1866MT/s CL10
Patriot Viper 3 Black Mamba 16GB KIT DDR3 1866MT/s CL10
The Patriot Viper 3 Black Mamba 16GB KIT DDR3 1866MHz CL10 RAM increases the computing power and capacity of computer systems compatible with DDR3 technology. The kit contains two separate 8GB modules which, in a dual-channel configuration, provide a total capacity of 16GB, allowing for smooth multitasking and work with demanding applications. The RAM operates at a tested frequency of 1,866MHz and uses timing with CL10 latency (10-11-10-30), which contributes to a fast system response when processing data. The operating voltage of the modules is a standard 1.5V. Each module is fitted with a passive aluminium heat sink that efficiently dissipates heat from the memory chips and maintains a stable operating temperature.
For computers
Intended for
DDR3
Memory type
2×8GB
Memory capacity
1,866MHz
Frequency
CL10
Latency
Key technologies of the Patriot Viper 3 Black Mamba 16GB KIT DDR3 1866MHz CL10 RAM
- Intended for – Suitable for desktop computers.
- Memory type – Uses the DDR3 standard for wide compatibility.
- Memory capacity – Offers a total capacity of 16GB in two 8GB modules, ensuring enough space for demanding applications.
- Frequency – Operates at 1,866MHz, which speeds up data transfer and system response.
- Latency – With CL10 timing, it ensures a fast response when processing data.
- Voltage – Operates at a standard voltage of 1.5V, which contributes to energy efficiency.
- Heat sink – A passive heat sink efficiently dissipates heat and maintains a stable operating temperature.
- XMP – XMP 1.3 support simplifies optimal performance settings without manual configuration.
Performance and stability for demanding use
This 16GB DDR3 RAM kit emphasises performance and reliability. The modules operate at a tested frequency of 1,866MHz, which accelerates data throughput and overall system response compared to basic DDR3 standards. A passive aluminium heat sink helps to efficiently dissipate heat to maintain stable operation even under high load. In addition, the manufacturer manually tests each kit to verify its functionality and compatibility with target platforms, especially with systems built on Intel 6th and 7th generation chipsets.
Simplified configuration
The memory supports Intel XMP (Extreme Memory Profile) version 1.3. This feature significantly simplifies setting optimal performance in the BIOS or UEFI interface. Instead of manually configuring frequency and timing, simply activate the preset XMP profile in the system, which automatically sets the modules to their tested speed of 1,866MHz and CL10 timing. The basic frequency according to the JEDEC standard is 1,600MHz with 9-9-9-24 timing, which serves as a default value to ensure wide compatibility.
Physical construction and compatibility
The Patriot Viper 3 Black Mamba memory kit is suitable for desktop computers with DIMM slots supporting DDR3. They are NON-ECC UDIMM modules with 240 pins. The design of the passive heat sink helps to reduce potential collisions with large CPU coolers, thus not limiting the choice of other components in the build. The kit of two 8GB modules allows for a dual-channel configuration, which further increases the overall throughput of the memory subsystem on compatible motherboards.
Specifications
Usage and type
Capacity
Frequency & timing
Advanced parameters
| Code: | DP110m |
| Warranty: | 120 months |
| Links: | Producer's Website: |
