Cougar FV270 Black
Cougar FV270 Black

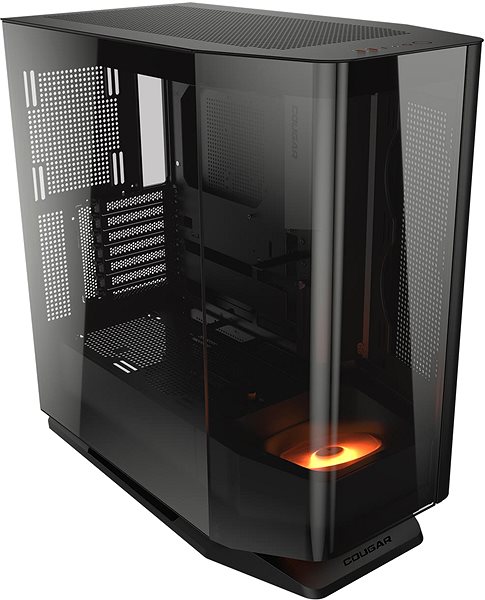

The Cougar FV270 computer case provides the foundation for building gaming rigs and workstations. The case has an unconventional polyhedral shape with tempered glass, which eliminates obstructive edges and opens up space for an unrestricted view of the installed components. The design effectively manages cooling using angled surfaces and fully supports modern motherboards with rear-facing connectors, simplifying cable management. Users can easily fit large graphics cards and powerful water cooling systems inside, while the raised front section allows for additional airflow from below to maintain stable temperatures.
Midi Tower
Case size
180mm
Max. CPU cooler height
420mm
Maximum graphics card length
1×
Number of pre-installed fans
9×
Total number of fan positions
Key features of the Cougar FV270 computer case
- Steel and tempered glass construction eliminates the front pillar
- Accommodates even large graphics cards
- Internal space fits tall CPU coolers
- Fan positions on angled surfaces optimise airflow
- Support for reverse-connector motherboards hides cables
- Pre-installed ARGB fan provides essential heat dissipation
Cooling in the Cougar FV270 computer case
Placing fans on the angled surfaces directs airflow into uninterrupted streams. The raised front section opens up another axis for air intake from below, which fundamentally changes the cooling dynamics inside the chassis. This system efficiently supplies fresh air to both the graphics card and the processor, preventing heat build-up. Strategically placed filters protect sensitive components from dust build-up and extend hardware lifespan. Users can easily remove and clean the filters, simplifying regular maintenance and preserving optimal airflow. A clean interior contributes to lower temperatures and quieter fan operation.
Space for graphics cards in the Cougar FV270
The interior accommodates graphics accelerators up to 420mm long, which includes even the most powerful cards. Rotatable brackets offer a choice between horizontal and vertical card orientation. Ample space eliminates collisions with other components and simplifies hardware selection. The design supports formats up to E-ATX and is fully compatible with reverse cable management systems like ASUS BTF or MSI Project Zero. A solid side panel conceals all cabling behind the motherboard.
Connectivity of the Cougar FV270 case

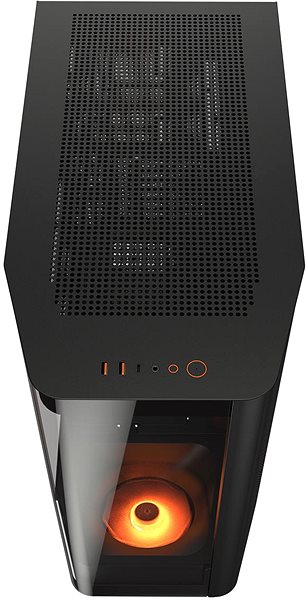

The top-mounted I/O panel includes a modern USB-C port for high-speed data transfer. A pair of USB 3.0 ports, along with a combo audio jack, ensures easy connection of peripherals, external drives, or gaming headsets. Placing the panel on top makes it more accessible if the case is on the floor under a desk.
Ready for your collectibles
The internal layout includes an optional mounting platform designed for displaying figurines or other collectibles. This feature turns the computer into a personal gallery, using the panoramic glass to showcase your favourite items effectively. The space inside the case serves not only hardware but also visual personalisation. Users have plenty of positions to install hard drives and fast SSDs. The chassis can hold up to four 2.5" drives or a combination of two 3.5" and two 2.5" drives for storing large amounts of data. The drive bays are positioned so they do not obstruct the main airflow and are easily accessible.
Motherboard formats
- ATX
- mATX (Micro ATX)
- mITX (Mini ITX)
- eATX (Extended ATX)
- CEB
Fans
- Top fan size: 3×120mm / 2×140mm
- Side fan size: 2×120mm / 2×140mm
- PSU shroud fan size: 2×120mm / 2×140mm
- Bottom fan size: 1×120mm
- Rear fan size: 1×120mm / 1×140mm
Ports
- USB 3.2 Gen 1
- USB-C
- Combined 3.5mm jack
Specifications
Usage and size
Colour
Internal structure
External structure
PSU
Cooling system
Backlight
Material
Dimensions
| Code: | MHfv270a |
| Warranty: | 24 months |
| Links: | Producer's Website: |
