AXAGON HMC-8HLSA 9-in-1 Hub, USB-C 5Gbps, 3x USB-A, HDMI 4k/60Hz, RJ-45, SD/mSD, audio, PD 100W
AXAGON HMC-8HLSA 9-in-1 Hub, USB-C 5Gbps, 3x USB-A, HDMI 4k/60Hz, RJ-45, SD/mSD, audio, PD 100W

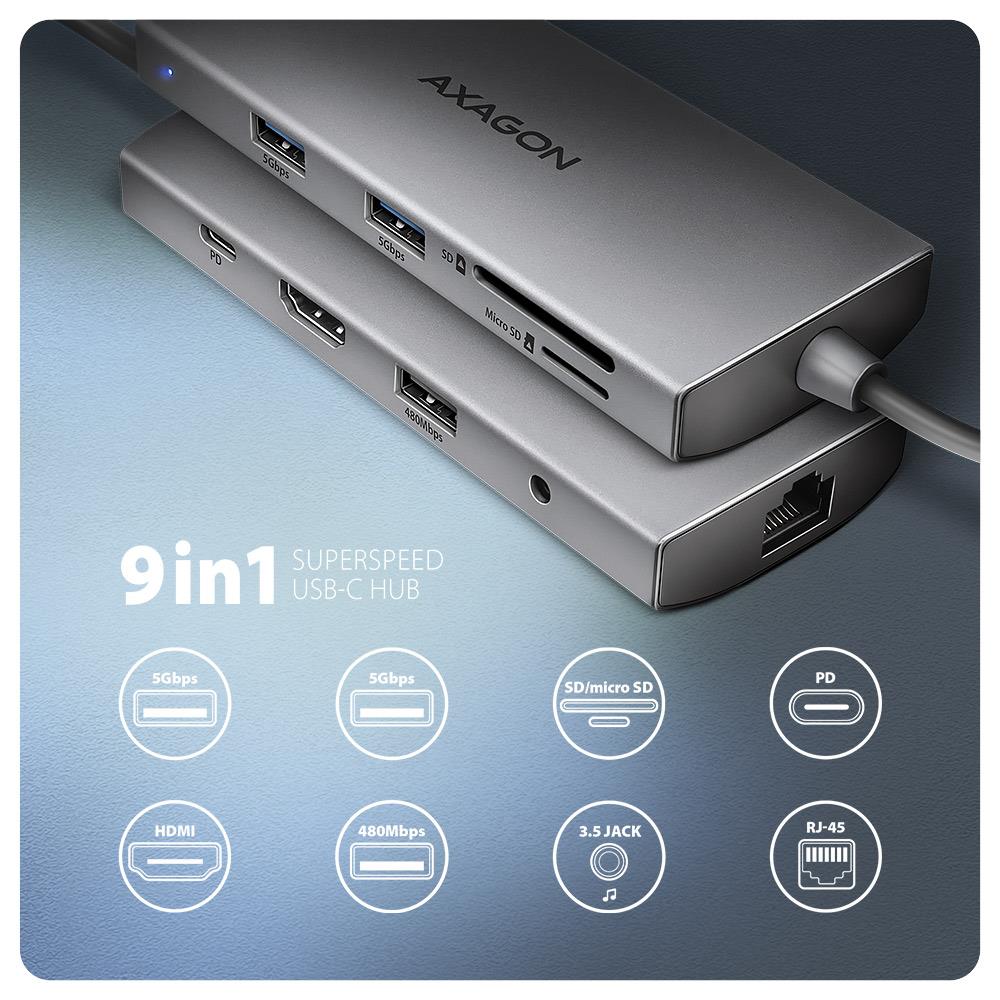

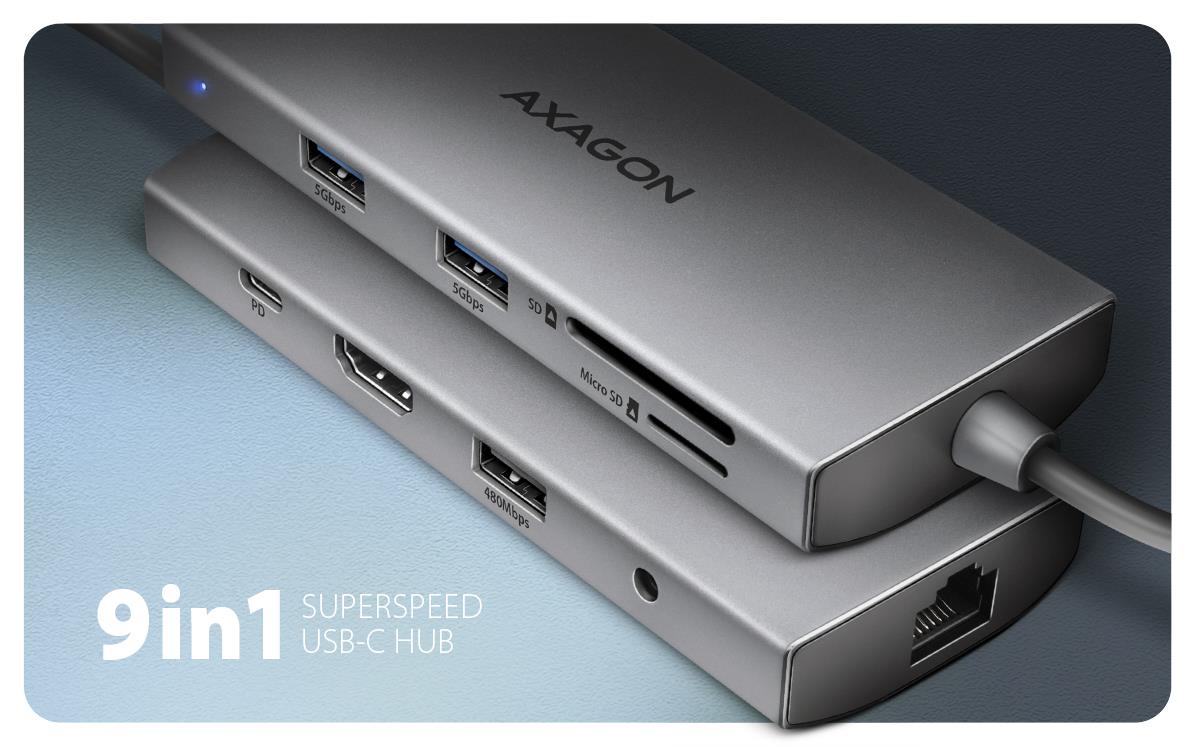

The AXAGON HMC-8HLSA 9-in-1 multiport USB-C 5Gbps hub expands your laptop, computer or phone with nine ports. You can easily and quickly connect a monitor, three USB devices, a Gigabit Ethernet network, headphones with a microphone, and an SD card reader to your computer via the reversible USB-C connector. You also get the ability to power your laptop using Power Delivery technology. This port replicator gives you a simple and compact 9-in-1 docking station for not only Windows laptops but also Apple notebooks such as the MacBook Air or MacBook Pro. The USB hub offers three USB outputs with a standard USB-A connector. Two of them with a speed of 5Gbps and one with a speed of 480Mbps for connecting a mouse or keyboard. The hub can also handle the permanent connection of several external drives at the same time. Thanks to the fast USB 3.2 Gen 1 interface, the transfer speed of the hub is up to 5Gb/s. The USB-C connector is reserved only for charging phones or laptops using Power Delivery 3.0 technology with a power of up to 100W. You plug a suitable USB-C Power Delivery charger into the hub and connect the hub to a laptop that supports Power Delivery. This also frees up one USB-C port on your laptop.
Key Features of the AXAGON HMC-8HLSA 9-in-1 Hub, USB-C 5Gbps, 3x USB-A, HDMI 4k/60Hz, RJ-45, SD/mSD, audio, PD 100W Docking Station
- Connect devices on the fly with Hot Plug support
- Full Plug and Play support
- Power saving mode support
- Powered via USB bus – USB bus power or from a PD charger
- Durable aluminium body for better hub cooling
- LED indicates connection of the hub to a computer with a steady light
- A high-quality shielded cable ensures high communication speed and minimal unwanted interference
- Card reader
- Supports Windows 10/11 and newer, macOS, Linux, Chrome OS and Android
Enjoy the Colours
The HDMI output provides high-quality images with up to 4K/60Hz Ultra HD resolution and supports multi-channel audio transmission. High refresh rates are also supported in popular gaming resolutions like 2K/144Hz or FullHD/240Hz. With HDR (High Dynamic Range) support, you can enjoy a significantly wider range of colours and contrasts without any limitations. For the video output to work correctly, the laptop must have a USB-C port with DisplayPort Alternate Mode (DP Alt Mode) support or a Thunderbolt 3, 4 or higher port.
Gigabit Network Card
The Gigabit network card expands the computer with a fast and stable network connection, adds a missing RJ-45 Ethernet connector, or adds another network card. The card reader supports all versions of SD and microSD cards, including SDXC and microSDXC with a capacity of up to 2TB. The card reader allows you to work with cards in both slots simultaneously and copy directly between them. The audio output is routed to a 3.5mm jack and allows you to connect stereo headphones with a microphone.
Plug and Play and Hot Plug
The elegant aluminium body ensures not only mechanical durability but also passive cooling. Thanks to the Plug and Play and Hot Plug functions, connecting the hub itself is very simple without complicated installation, and you can also easily connect and disconnect peripherals while the computer is running. The hub is also not afraid of being connected to phones with a USB-C connector. For example, you can connect a flash drive, keyboard, mouse, monitor, TV or projector to your phone.
Package contents:
USB-C hub with a fixed 20cm cable, multilingual manual
Input (connection to a laptop):
USB 5Gbps (USB 3.2 Gen 1 / USB 3.0), USB-C male connector
Compatible with USB 3.2 Gen 2, USB4 and Thunderbolt 3/4

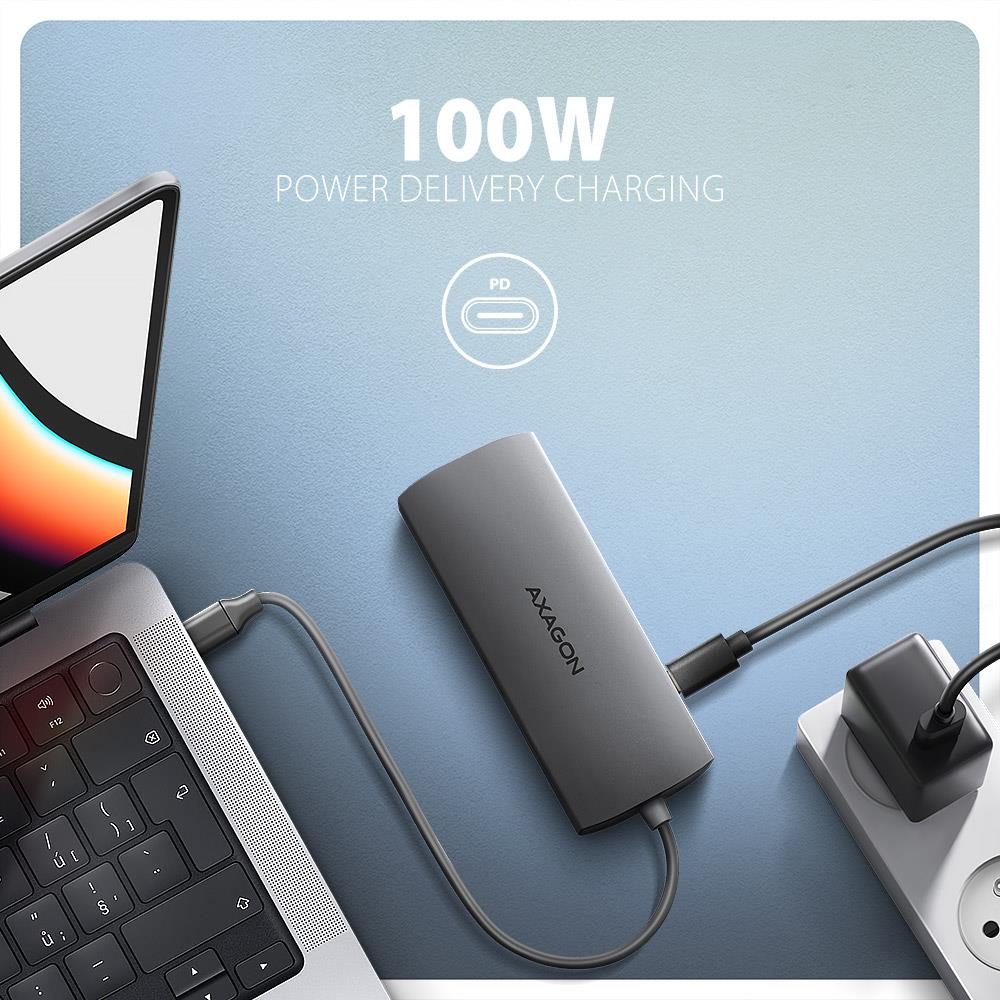

Input (power):
USB Power Delivery 3.0 – 100W port (power only), USB-C female connector
Powering a laptop from a mains adapter via a USB-C hub
PD power must be supported by both the laptop (phone) and the mains charger

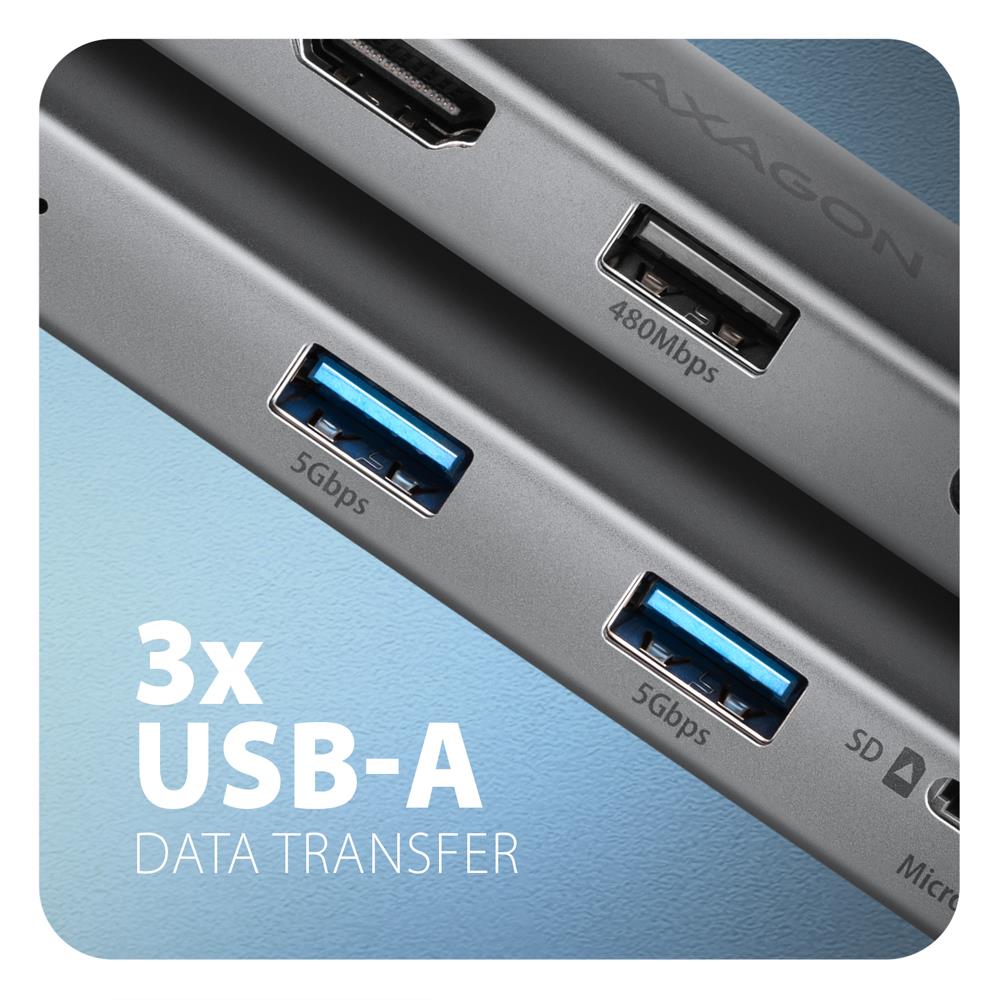

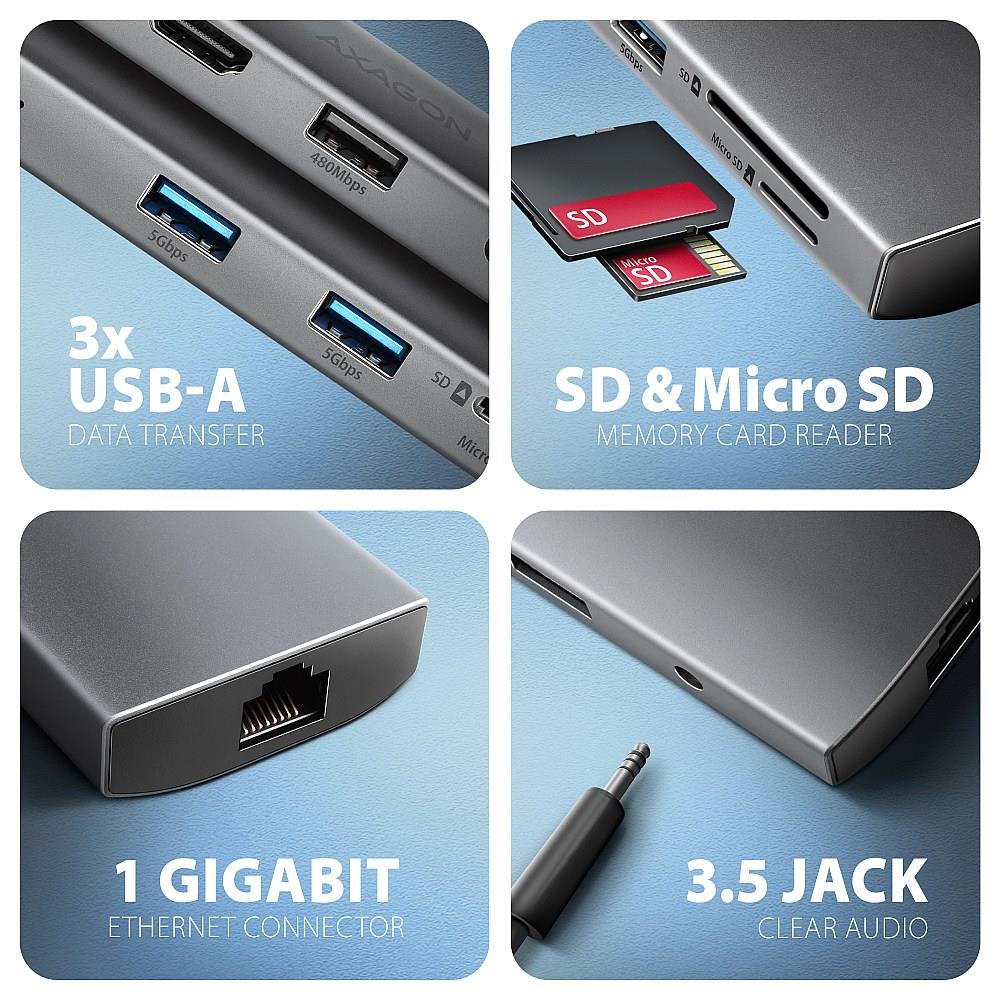

USB outputs:
2× USB 5Gbps port, USB-A female connector
1× USB 480Mbps port, USB-A female connector
The USB-C hub can handle the connection of multiple external drives simultaneously
Video output:
1× HDMI port, HDMI A female connector
4K resolution 4096 × 2160 at up to 60Hz
2K / WQHD resolution 2560 × 1440 at up to 120Hz
FHD resolution 1920 × 1080 at up to 240Hz
Support for the above max. resolutions and frequencies requires connection to a computer with DisplayPort version 1.4.
For the video output to function, the hub must be plugged into a USB-C port that supports DisplayPort Alternate Mode (DP Alt Mode) or a USB-C port that supports Thunderbolt 3/4. A suitable OS is also required. Without this support, the video output function will not be available.
HDR (High dynamic range, 10 bit support) support – realistic reproduction of light and dark details.
HPD (Hot-Plug-Detect) support
TMDS (Transition Minimized Differential Signalling) support
Full support for HDCP 1.4 and 2.3 (High-bandwidth Digital Content Protection)
Support for 2-channel audio with a sampling rate of up to 192kHz and up to 24-bit audio – depends on the source and end device, i.e. laptop/phone and TV/monitor/AV receiver.

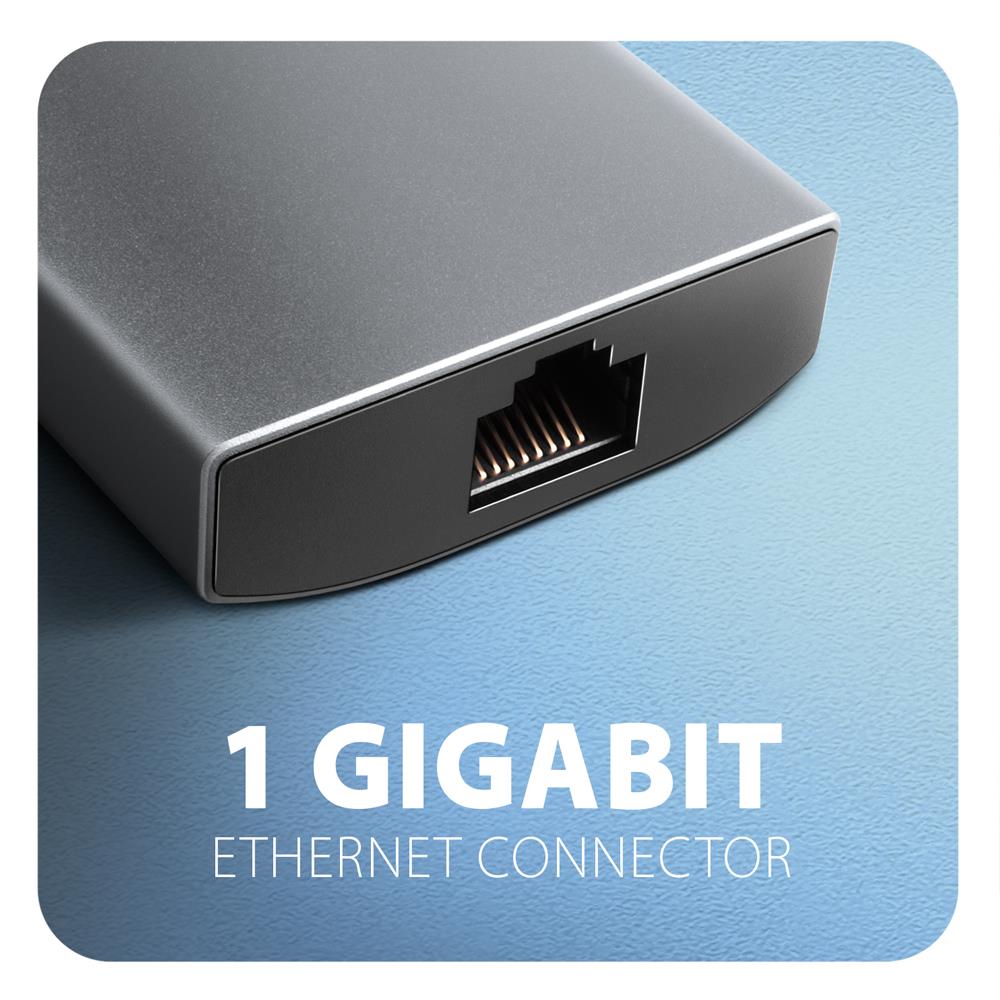

RJ-45 output:
Gigabit Ethernet interface with RJ-45 connector for connection with UTP, FTP, STP or SFTP patch cable.
Supported transmission speeds for the Ethernet interface 10/100/1000Mb/s.
Supported specifications IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T.
10/100/1000Mb/s auto-detection.
Wake-on-LAN support.

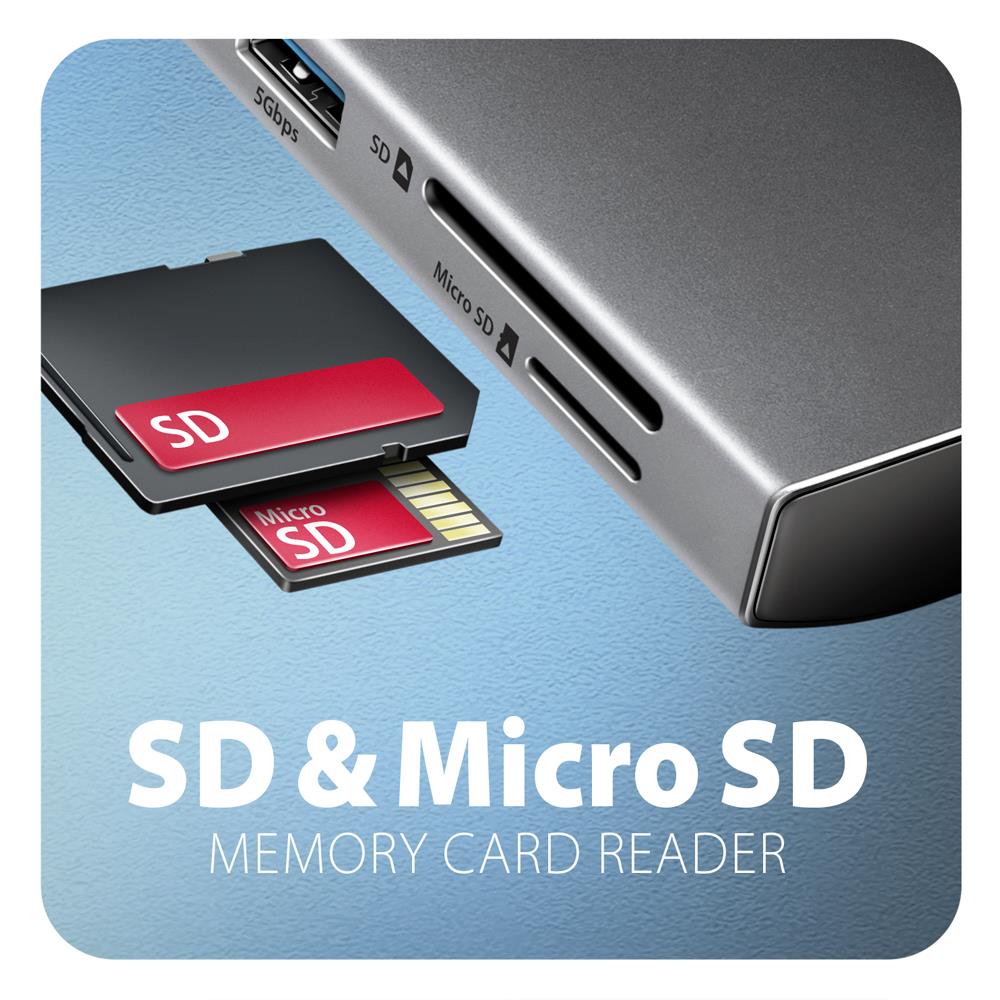

Card reader – two slots:
Micro SD slot: microSD / microSDHC / microSDXC / TransFlash.
SD slot: SecureDigital / SDHC / SDXC, MultiMedia Card, MMC, MMC Dual Voltage, MMC mobile, RS-MMC, with an adapter - miniSD, microSD / microSDHC / microSDXC, MMC Micro.
Supports UHS-I, speed up to 104MB/s, supports hardware ECC function and CRC function.
2 LUN – the reader is indicated as two disk drives, possibility of copying from card to card.

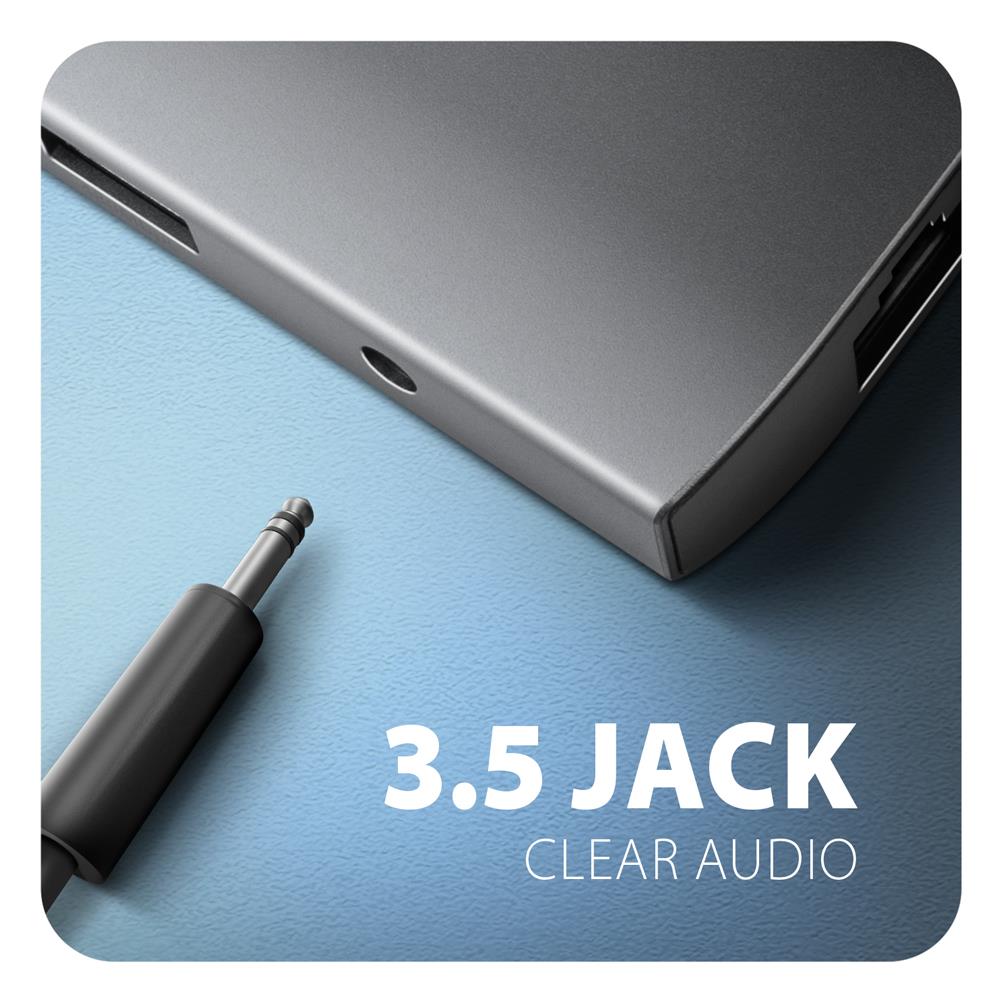

Audio output/input:
1× 3.5mm jack for a headset, headphones or active speakers
2-channel analogue stereo output 48kHz @ 16 bit for playback
1-channel analogue mono microphone input 48kHz @ 16 bit for recording
Dimensions:
118 × 46 × 15mm
Weight:
88g
USB-C male cable length:
20cm
Supported operating systems:
Windows 10 / 11 and newer, macOS, Linux, Chrome OS and Android.
Compatibility depends on the updated operating system and support from the device manufacturer.
DisplayPort Alternate Mode (DP Alt Mode) is only supported in updated operating systems and also depends on support from the device (laptop, phone).
The correct functioning of the product may also be affected by the graphics card drivers. It is recommended to download the latest versions of the drivers.
Specifications
Type and connection
Memory card support
Number of slots
Dimensions and weight
Features
Laptop power port
Most common ports
Data ports - Number and standards
Power ports for electrical devices
Graphics ports - Number and standards
Network ports
Audio ports
Features
Compatibility
| Code: | AG307d |
| Warranty: | 36 months |
| Links: | Producer's Website: |
