Zyxel GS1350-12HP

100,990 Ft

Zyxel GS1350-12HP

Zyxel GS1350 smart switch ideal for security camera systems

The Zyxel XGS1350-12HP switch with a 10G uplink simplifies network management in your business. Power over Ethernet functionality for expansion with high-power-demand devices and energy-saving features ensure simple, reliable operation. Zyxel also supports IPv6. Additionally, the Zyxel XGS1350-12HP switch offers data transmission over longer distances than you are used to, enabling you to install cameras and other devices at a distance of up to 250m.

Key features of the Zyxel XGS1350-12HP switch

  • Zyxel switch simplifies corporate network management
  • Power over Ethernet supplies power via network cable for up to 8 devices (total power output of 130W)
  • Electrical noise and surge filtering ensures a stable power supply for PoE devices and the system
  • Double protection against surges and electrostatic discharge
  • Smart monitoring helps protect the system against anomalies
  • Offers 10 Gigabit PoE and 2 SFP ports
  • Connect devices at a distance of up to 250m
  • Part of the Zyxel One Network concept

Zyxel One Network

The Zyxel One Network concept simplifies network configuration and management using the ZON Utility. It enables easy interconnection, discovery and bulk management of individual devices. The Zyxel One Network includes switches, WiFi APs and many other devices.

Zyxel GS1350-12HP switch

Zyxel switch features surveillance software functions

Customise the parameters of the Zyxel XGS1350-12HP switch for various devices and scenarios. It also features automatic detection and recovery of unresponsive IP cameras and other powered devices. The Zyxel XGS1350-12HP switch ensures continuous power, so connected cameras remain operational even during switch updates or configuration.

Zyxel GS1350-12HP switch

Long-distance installation capability

Standard PoE switches usually support power delivery up to a distance of approximately 100m, but the Zyxel XGS1350-12HP is in a different league. Activating the extended range allows you to install IP cameras and other devices up to 250m away using existing Cat 5e cabling.

Zyxel GS1350-12HP switch

Switch with high PoE power capacity

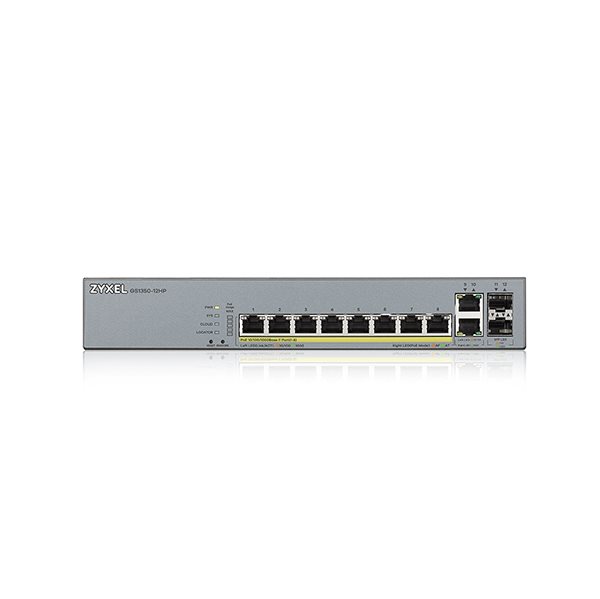

The Zyxel XGS1350-12HP switch powers up to 8 connected devices via PoE (Power over Ethernet) with a total power output of 130W. You can easily power multiple IP cameras simultaneously. An intuitive status LED on the main panel of the Zyxel switch indicates current status. The Restore button on the front panel allows you to revert the Zyxel XGS1350-12HP smart switch to its previous state in the event of a misconfiguration.

Specifications

Type

Switch type Managed
Design Rack
Use Company, Industrial

Functions

Functions PoE, Port mirroring
Switching layer L2
Advanced network functions QoS (Quality of Service), VLAN, LACP line aggregation
Snooping IGMP, DHCP
Management and security Port Security
Functions for camera systems Priority mode, Extended mode , PoE Auto recovery

Ports

RJ-45 10 ×
SFP 2 ×

Number of LAN ports

Number of LAN ports with 1 Gbit speed 10

PoE properties

PoE standard 802.3af (PoE), 802.3at (PoE+), 803.3bt (PoE++)
Performance 130 W
Number of PoE ports 8 ×

Features

Power Supply From the network
Maximum number of VLANs 256 ×
Features IPv6 Ready

Speed

Switching capacity 24 Gb/s
Packet capacity (64B packets, in million of packets) 17.8 Mpps

Dimensions

Width 267 mm
Height 44 mm
Depth 162 mm

Material

Body material Metal

Operating temperature

Maximum operating temperature 20 °C

Weight

Weight 1,630 g
Code:  VD410a9
Warranty: 99 months
Links: Producer's Website:
Manufacturer information

Zyxel Networks, o.z., Štětkova 1638/18, 140 00 Praha 4 Nusle, [email protected]
