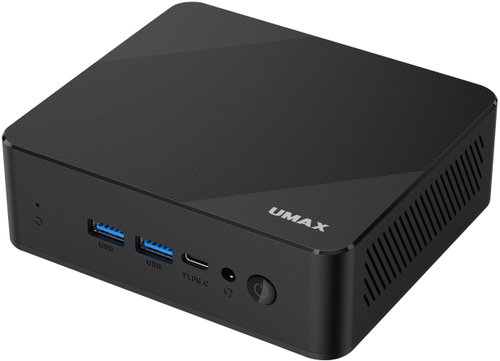

Umax U-Box A15 Pro 8+256
Umax U-Box A15 Pro 8+256
The Umax U-Box A15 Pro 8+256 mini PC is designed for office work, web browsing, and multimedia playback. Its 43×125×110mm frame saves space on your desk at home or in the office. The 6-core 12th generation Intel Core i3 Alder Lake processor provides sufficient computing power to run common applications smoothly. This PC comes with Windows 11 Pro pre-installed, which supports Czech localisation.
Intel Core i3 1215U
Processor model
8 GB
RAM size
256 GB
SSD capacity
Windows 11 Pro
Operating system
65 W
Power supply
Key features of the Umax U-Box A15 Pro 8+256 mini PC
- Features a six-core Intel Core i3 1215U processor
- 8GB base capacity of DDR4 RAM
- Fast M.2 NVMe SSD storage with 256GB capacity
- Includes a free slot for a second SATA3 drive
- Connectivity includes a Thunderbolt 4 port
- Network card supports a 2.5Gbps wired connection
- Device dimensions are 43×125×110mm
Computing power
At the heart of the PC is an Intel Core i3 1215U processor, which runs at a base frequency of 1.2GHz and can auto-overclock up to 4.4GHz. The 8GB of DDR4 RAM runs at 2666MHz and is installed in one of the two available slots. You can increase the total RAM capacity up to 64GB. The second free SO-DIMM slot is for future upgrades, letting you expand the configuration to suit your needs.
Storage and expansion options
The PC stores data on a fast M.2 PCIe Gen3×4 NVMe SSD with a total capacity of 256GB, which speeds up the operating system boot and file loading times. Inside the PC, there is one free slot for a 2.5" hard drive with a SATA3 interface. This lets you easily add more storage for your data without having to disconnect the existing drive. This combination of slots provides flexibility when planning storage capacity for work documents and multimedia files.
Connectivity
Connecting peripheral devices is handled by four USB 3.2 Gen 2 ports with a transfer speed of up to 10Gb/s and one multi-purpose Thunderbolt 4 port. Wireless network connectivity is provided by Wi-Fi 6, and integrated Bluetooth 5.2 is for connecting wireless accessories. A wired internet connection is handled by the integrated RJ-45 port, which supports transfer speeds of up to 2.5Gbps. There is also a combined 3.5mm audio jack for headphones and a microphone, as well as a microSD memory card reader.
Graphics performance and video outputs
The Intel UHD Graphics card with a frequency of 1.1GHz handles image rendering and supports high-resolution video transmission. There are two HDMI 2.1 graphic outputs, complemented by a video output via the Thunderbolt 4 connector. This means the PC can display on multiple monitors simultaneously, making it easier to work with several open applications at once. This configuration is suitable for office presentations, watching 4K video, or for general home multimedia use.
Operating system
The hard drive comes with a pre-installed Czech version of Windows 11 Pro, which brings a host of improvements. The redesigned user interface includes integrated widgets for quick access to information and improved window management using preset templates. The system places a strong emphasis on a high level of data security, which is important for business deployment and protecting personal files. You can also use virtual desktops with the option to set your own background.
Operating characteristics and cooling
Active cooling maintains the optimal operating temperature of all hardware components, even under prolonged system load. With a power consumption of just 15W, the processor uses a small amount of electricity and contributes to the device's energy-efficient operation. The entire system is powered by the included 65W mains adapter. The low power consumption makes this PC an efficient alternative to conventional high-power desktop computers, while the cooling noise remains at a low level.
Connectors
- 4× USB 3.2 Gen 2
- 1× USB-C
- 2× HDMI 2.1
- 1× RJ-45 (LAN)
- 1× 3.5mm combined audio jack
- 1× MicroSD slot
- 1× Power connector
Specifications
Use
Processor
GPU series/model
Hard Drive
Equipment
Colour and design
PSU
Memory
Outputs
Case
Operating system
Package contents
Power outlet type
Product series
| Code: | VB0354o5 |
| Warranty: | 24 months |
