Ubiquiti UniFi Device Bridge
119,690 Ft

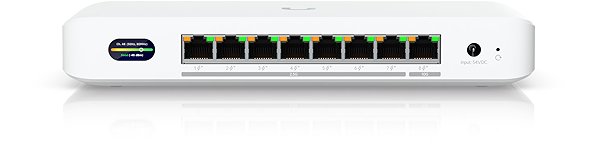

Ubiquiti UniFi Device Bridge
A switch is a functional network element connecting individual devices and other network elements. It is designed for controlling network traffic. The Ubiquiti UniFi Device Bridge is made to be placed on the work desk or wall. This type impresses with a switching capacity of 440 Gb/s. The Switch is equipped with 8 × RJ-45 ports that facilitate connection with network elements. The switch dimensions are 212.9 × 113 × 32.5mm. The Ubiquiti device works with PoE technology that provides power and signal connection to end devices with a single LAN cable. The weight of the switch is 548g.
Key Features of the Ubiquiti UniFi Device Bridge Switch
- For connecting end devices and other nodes
- 440 Gb/s switching capacity
- Offers 8 × RJ-45 ports
- Ubiquiti switch is designed for work desks or wall installation
- PoE (Power over Ethernet) technology support
- VLAN support
Whole description
Specifications
Type
Switch type
Centrally controlled by controller
Design
Desktop
Use
Company
Functions
Functions
PoE
Switching layer
L2
Advanced network functions
VLAN
Snooping
IGMP
Management and security
ACL
Functions for camera systems
Priority mode
Ports
RJ-45
8 ×
10GbE
1 ×
Number of LAN ports
Number of LAN ports with 2.5 Gbit speed
7
Number of LAN ports with 10 Gbit speed
1
PoE properties
PoE standard
802.3at (PoE+)
Performance
35 W
Maximum output power per port
30 W
Number of PoE ports
8 ×
Routing
Routing
Static routing
Features
Power Supply
DC Jack
Maximum number of VLANs
4,096 ×
Features
IPv6 Ready
Speed
Switching capacity
440 Gb/s
Packet capacity (64B packets, in million of packets)
40.92 Mpps
Dimensions
Width
212.9 mm
Height
32.5 mm
Depth
113 mm
Material
Body material
Plastic
Operating temperature
Minimum operating temperature
-30 °C
Maximum operating temperature
40 °C
Weight
Weight
548 g
Power outlet type
Country
Czechia, Slovakia, Hungary, Germany, Russia, Austria, Croatia, France, Poland, Romania, Slovenia
All parameters
| Code: | Ubiq26251 |
| Warranty: | 24 months |
| Links: | Producer's Website: |
| Manufacturer information |
Ubiquiti International Holding B.V., Ekkersrijt 3102. Son en Breugel, 5692 CC. Netherlands, [email protected]
|
