mBot - Laser plotter - kit
mBot - Laser plotter - kit
Have you heard about the mBot Laser plotter electronic building kit? Its simple construction along with a positioning device and a powerful built-in laser offers a perfect tool for letting your creativity run free. This electronic kit allows you to can cut or engrave into a variety of materials due to a powerful laser. The kit can be easily controlled through PC software which unlocks a wide range of possibilities. Treat yourself or your friends and family with this original gift.
Unleash your creativity
The Laser Plotter electronic building kit makes it easy to decorate a variety of materials with your own symbol or logo. With just a few steps, you can even burn photos from your smartphone. No need for any complex preparations - just install the necessary software.and unleash your creativity. After assembly, the mBot Laser plotter is a framework of sorts, but it comes equipped with everything you need.
Laser plotter - kit
Paint, engrave, create
See for yourself what the electronic mBot Laser plotter kit can do. Due to the adjustable intensity of the light beam, the possibilities for burning and engraving are almost endless. The laser has a power output of 1600mW and can easily handle leather, paper and wood. Its high precision allows you to create engravings or cuts with an accuracy of up to 0.1mm. Setting everything up in the PC software is very simple and only takes a few minutes..
Laser plotter - kit
Key features of the mBot Laser plotter - kit
- Made of high-quality aluminum alloy
- Light beam with manual sharpening
- MegaPi control board compatible with Arduino MEGA 2560
- Laser movement speed up to 200mm/s
- Laser precision up to 0.1mm
- Working area up to 383 × 367mm
- User-friendly software
- Lifetime up to 6000h

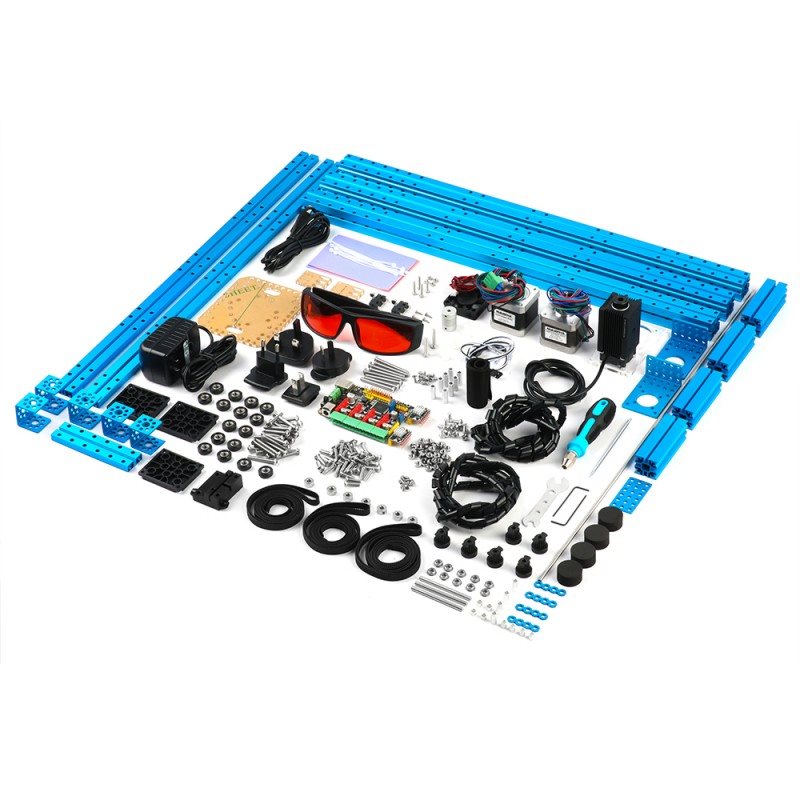

Package contents

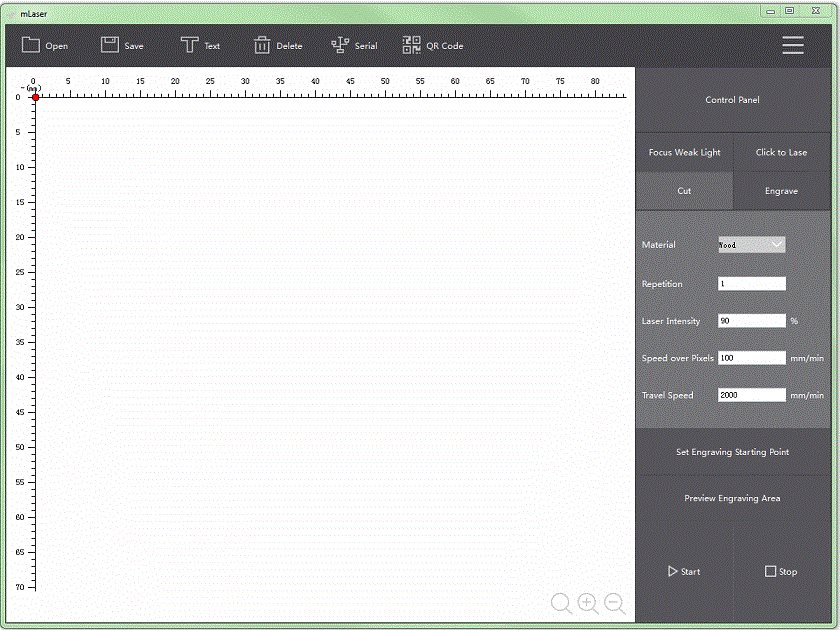

The mLaser software
Control the kit through an application
The mBot electronic kit can be used with the mLaser software to burn various images and shapes into all sorts of materials. The most commonly used materials include wood, leather, paper, acrylic and cardboard. The software should suit every user, as there is a mode for beginners as well as for experts. The control board is compatible with Arduin.
Use safety accessories

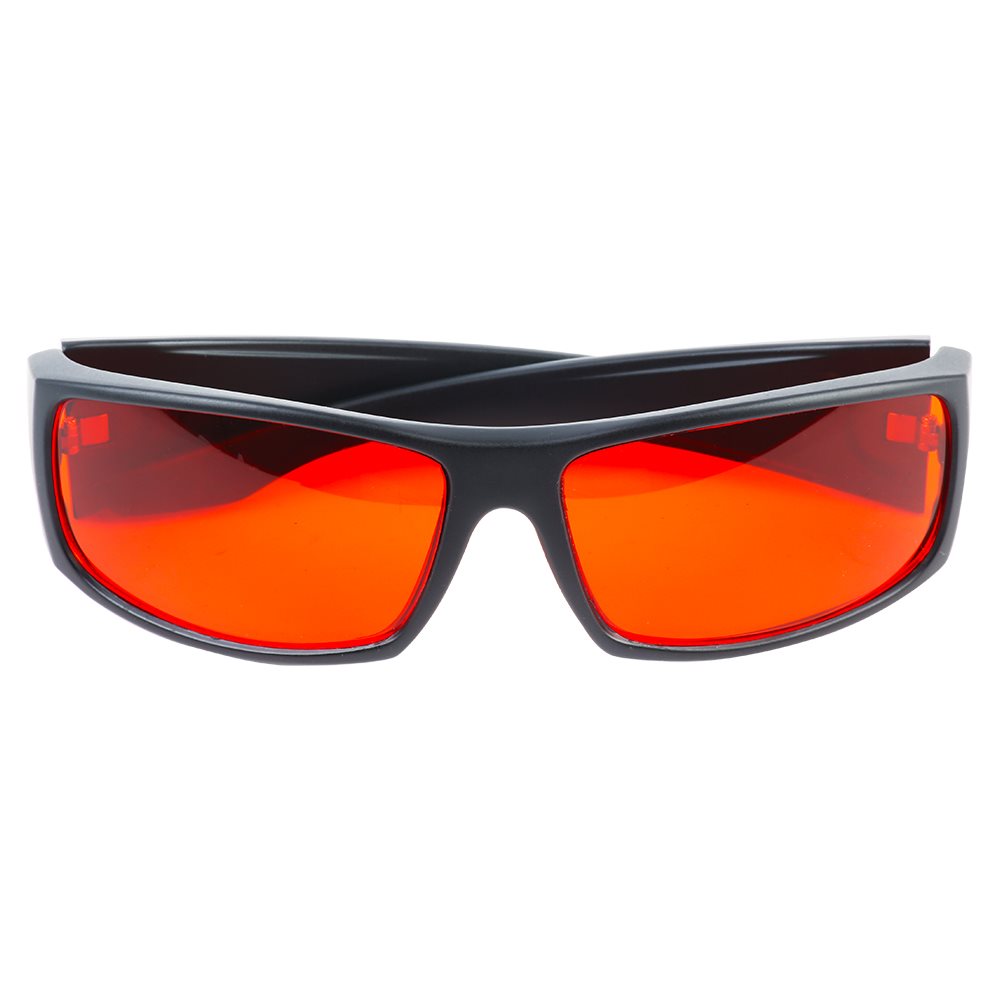

Protective glasses
Laser plotter electronic building kit

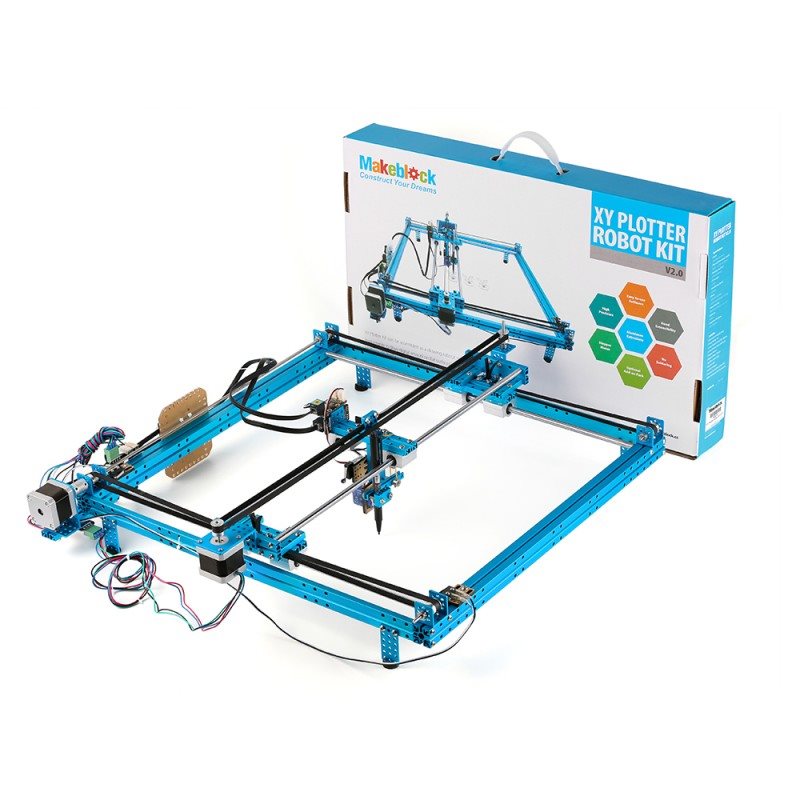

Technical parameters
Material: anodised aluminum
Dimensions: 535mm × 637mm × 184mm
Workspace dimensions: 383mm × 367mm
Accuracy: 0.1mm
Maximum working speed: 200mm/s
Noise: low
Weight : 4.5kg
Power supply: adapter
Connection: USB
Mainboard: MegaPi (Arduino & Raspberry compatible)
Software: mLaser
Supported file types: PNG, JPG, BMP, SVG, DXF
Usable material: paper, cardboard, leather, rubber, wooden board, foam paper, dark coloured fabric, opaque black acrylic, gray plastic film/board, urethane sheet
Safety notice
- Do not look directly into the laser beam.
- Do not threaten others with the laser.
- Keep out of reach of children and persons unfamiliar with laser use.
- Persons under the age of 18 may only use the laser under parental supervision.
- The use of a blue-violet laser requires the use of safety glasses.
- The laser has a positive and negative pole. Be careful not to reverse the poles when connecting the laser.
- We recommend that you use the laser at 90% of maximum power. This ensures maximum service life.
- Harmful vapors may occur when using the laser. Ensure good ventilation.
Safety notices
