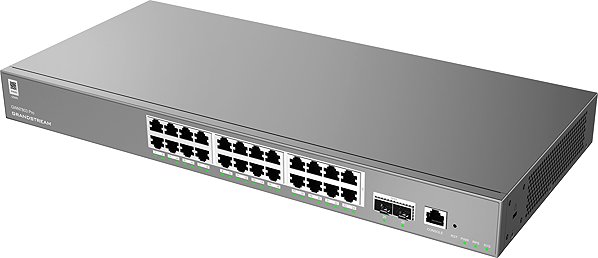

Grandstream GWN7803 Pro
Grandstream GWN7803 Pro
Managed L2++ switch Grandstream GWN7803 Pro is designed to manage and expand business networks. It offers 24 gigabit RJ-45 ports, two 10Gb/s SFP+ ports and one 10GbE port for high-speed connection of servers or backbone elements. With a switching capacity of 90.112Gb/s, it handles even demanding data traffic. Support for redundant power supply and a metal body designed for rack mounting increase operational reliability.
Key features of the Grandstream GWN7803 Pro switch
- Managed L2++ switch designed for business networks with rack mounting
- Equipped with 24 gigabit RJ-45 ports and two 10Gb/s SFP+ ports
- Switching capacity of 90.112Gb/s
- Support for functions such as QoS and VLAN (up to 4000)
- Static routing and ACL for access control
- IGMP, DHCP and MLD snooping to optimise network traffic
- Port mirroring for network monitoring
- Redundant power supply
- Operating temperature range from 0°C to 45°C
- Dimensions 44×200×440mm (H×W×D)
- Weight 2500g
Advanced network management and reliability
The switch supports L2++ features that enable network traffic management. Segment your network with support for up to 4000 VLANs. QoS (Quality of Service) prioritises data streams. Other features include IGMP and MLD snooping, ACL (Access Control List) and static routing. Support for redundant power supply increases operational reliability.
Specifications
Power outlet type
Type
Functions
Ports
Number of LAN ports
Routing
Features
Speed
Dimensions
Material
Operating temperature
Weight
| Code: | Grand26007 |
| Warranty: | 36 months |
| Links: | Producer's Website: |
| Manufacturer information |
Grandstream Networks, Inc.,Picus Advisors Ltd., Taivalmaki 9F1-02200 Espoo, FINLAND, www.picus.fi, [email protected]
|
