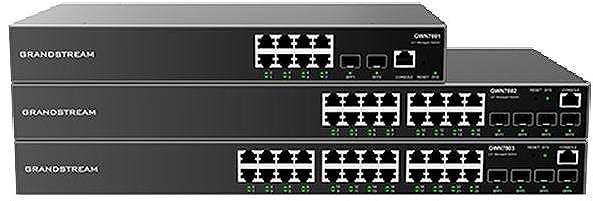

Grandstream GWN7803
Grandstream GWN7803
Grandstream GWN7803 managed L2 switch lets you manage and expand your business or home network infrastructure. It features 24 gigabit RJ-45 ports and four SFP ports for optical connection of backbone network elements. You can manage the device locally via a web interface or centrally using GWN.Cloud and GWN Manager cloud platforms. Advanced features like VLAN and QoS enable efficient network traffic management and security.
Key features of the Grandstream GWN7803 managed switch
- Designed for L2 management in business and home networks
- Equipped with 24 gigabit RJ-45 ports and 4 gigabit SFP ports
- Switching capacity of 57.344Gb/s and forwarding rate of 41.66Mpps
- Support for up to 4000 VLANs, QoS and port mirroring
- IGMP, DHCP and MLD snooping features for network traffic optimisation
- Advanced security with ACL, 802.1X authentication, DoS attack protection, IP Source Guard and ARP Inspection
- Management via local web interface, GWN.Cloud or GWN Manager
- Support for network traffic in both IPv4 and IPv6 networks
- Metal rack-mountable body for installation in a cabinet
- Operating temperature up to 45°C
- Dimensions of 44×200×440mm (H×W×D)
- Weight of 2700g
Advanced network management and security
Grandstream GWN7803 switch offers flexible management options. In addition to a local web interface, it also supports centralised management via the GWN.Cloud platform and GWN Manager software. For efficient traffic control, features like VLAN for network segmentation and QoS for data flow prioritisation are available. The switch supports advanced security features, such as ACL, 802.1X authentication, IP Source Guard, ARP Inspection and DoS attack protection, which protect the network from unauthorised access and external threats.
Specifications
Power outlet type
Type
Functions
Ports
Number of LAN ports
Features
Speed
Dimensions
Material
Operating temperature
Weight
| Code: | Grand24016 |
| Warranty: | 36 months |
| Links: | Producer's Website: |
| Manufacturer information |
Grandstream Networks, Inc.,Picus Advisors Ltd., Taivalmaki 9F1-02200 Espoo, FINLAND, www.picus.fi, [email protected]
|
