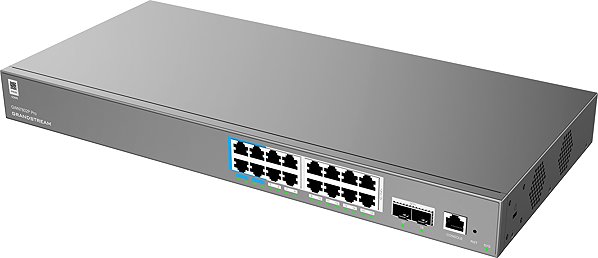

Grandstream GWN7802P

Grandstream GWN7802P managed switch lets you manage and expand your business network infrastructure. It features 16 gigabit RJ-45 ports and two 10Gb/s SFP+ ports for high-speed backbone connections. All 16 ports support Power over Ethernet (PoE) with 802.3af/at/bt standards. The total PoE budget reaches 250W, delivering up to 60W per port. With a switching capacity of 73.728Gb/s and advanced L2++ features such as static routing, the switch ensures smooth and secure network operation. The metal body is designed for rack mounting.

Powerful PoE power supply

The switch features 16 ports supporting Power over Ethernet, which meet 802.3af (PoE), 802.3at (PoE+) and 802.3bt (PoE++) standards. The total PoE budget is 250W. With a maximum output of up to 60W per port, the device can power more demanding hardware such as PTZ cameras or access points. Power management enables efficient power distribution to connected devices.

Network management and security

The device offers advanced L2++ features to manage and optimise network traffic. Support for up to 4000 VLANs lets you logically segment the network to increase its security and performance. Quality of Service (QoS) prioritises data streams, such as voice or video transmissions. Security is further strengthened by the Access Control List (ACL) and IGMP, DHCP and MLD snooping features, which prevent unwanted multicast and DHCP traffic. Static routing ensures efficient data routing between different networks.
