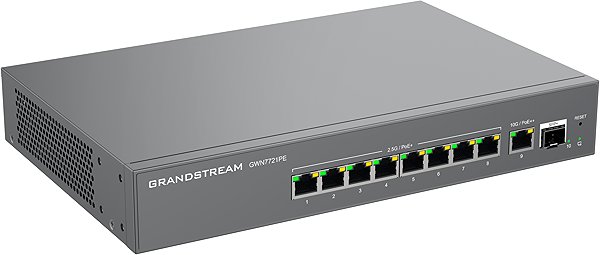

Grandstream GWN7721PE
Grandstream GWN7721PE
Grandstream GWN7721PE managed L2 switch is designed to manage and expand network infrastructure in home and business environments. It offers a combination of eight 2.5Gb/s ports and one 10Gb/s port, complemented by a 10Gb/s SFP+ port for high-speed backbone connectivity. With PoE++ (802.3bt) support and a total PoE budget of 130W, it can power even energy-demanding devices. A switching capacity of 81.92Gb/s ensures high data throughput.
Key features of the Grandstream GWN7721PE switch
- Managed L2 switch designed for deployment in home and business networks
- Equipped with eight 2.5Gb/s and one 10Gb/s RJ-45 port
- Includes one 10Gb/s SFP+ port for connecting backbone elements
- PoE, PoE+ and PoE++ (802.3af/at/bt) support on all nine ports
- Total PoE budget of 130W with a maximum output of 90W per port
- Switching capacity reaches 81.92Gb/s
- Advanced L2 features including QoS, VLAN, IGMP/DHCP snooping and port mirroring
- Support for up to 32 VLANs and loop detection
- Reliable operation in temperatures from 0°C to +45°C
- Dimensions 44×280×180mm (H×W×D)
- Weight 1850g
- Desktop design
- Metal body
PoE++ power supply and advanced network functions
With PoE++ (802.3bt) support, the switch can power devices with high energy requirements, delivering up to 90W per port. Advanced L2 features enable efficient network management. Use VLANs to logically segment the network, while QoS (Quality of Service) prioritises data traffic, which is crucial for VoIP telephony or video conferencing. Features such as IGMP and DHCP snooping or automatic loop detection increase the stability and security of your infrastructure.
Specifications
Type
Functions
Ports
Number of LAN ports
PoE properties
Features
Speed
Dimensions
Material
Operating temperature
Weight
Power outlet type
| Code: | Grand26014 |
| Warranty: | 36 months |
| Links: | Producer's Website: |
| Manufacturer information |
Grandstream Networks, Inc.,Picus Advisors Ltd., Taivalmaki 9F1-02200 Espoo, FINLAND, www.picus.fi, [email protected]
|
