Socket and chipset
Socket
AMD TR5
Chipset
AMD TRX50
Format & functions
Motherboard form factor
eATX (Extended ATX)
Basic functions
Bluetooth, Integrated network card, Integrated sound card, M.2 , PCI Express 5.0, For CPU with integrated GPU, Serial ATA III, Wi-Fi
Memory
Design
DIMM
Memory type
DDR5
Number of RAM slots
4 ×
Connection Mode
quad-channel
Max. frequency (OC)
7,800 MHz
Advanced parameters
Sound card type
Realtek ALC4080
Number of sound card channels
2
Connectors
External

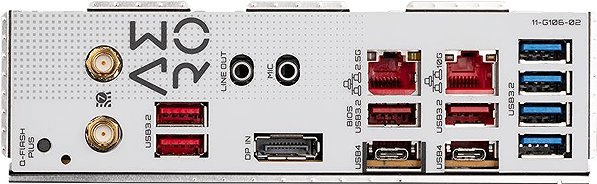

Jack, RJ-45 (LAN) 10Gbps, RJ-45 (LAN) 2.5Gbps, USB 3.2 Gen 1, USB 3.2 Gen 2, DisplayPort IN, USB 4
Internal
ARGB LED Header, RGB LED Header, Serial ATA III, TPM header, USB 3.2 Gen 1 bracket, USB 2.0 bracket, USB-C 3.2 Gen 2x2 bracket, M.2 PCIe 5.0, M.2 PCIe 4.0, PCIe 5.0 x16, PCIe 4.0 x16
PCI express x16
3×
USB 3.2 Gen 1 (USB 3.0)
4×
USB 3.1 (3.1 gen2)
4×
USB 4.0
2×
M.2 slots
4×
Serial ATA III
8×
Series
Series
Gigabyte Aero
