GIGABYTE B650E EAGLE WIFI6E
GIGABYTE B650E EAGLE WIFI6E

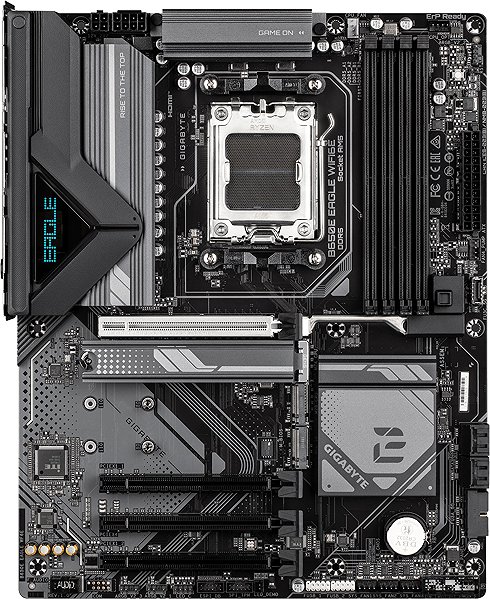

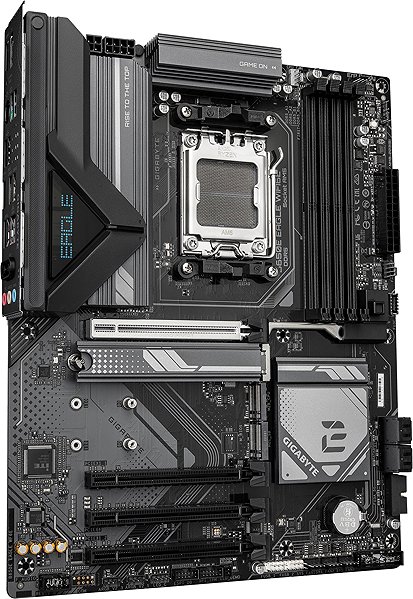

This GIGABYTE motherboard is built on the AMD B650 chipset with the AMD AM5 socket for the CPU. As is the standard, it is also equipped with a sound card which handles 7,1 channels. You can use a network connection module with the useful Wi-Fi connection support. It's quite a large motherboard for extra powerful systems with multiple hardware cards. If you want to use this motherboard, you will require a compatible ATX format PC case.
GIGABYTE B650E EAGLE WIFI6E Motherboard Key Features
- AMD AM5 socket and the AMD B650 chipset
- GIGABYTE B650E EAGLE WIFI6E format: ATX
- Integrated sound card for 7,1 channels
- DDR5 RAM type with DIMM design
- The motherboard can accommodate 4 × dual-channel memory modules
GIGABYTE B650E EAGLE WIFI6E Motherboard Connectivity
Computer memory is extremely important, so this GIGABYTE motherboard has 4 RAM slots. It's designed for DDR5 type DIMM RAM. You can link them in dual-channel mode. This motherboard is compatible with modules with a clock speed of up to 8200 MHz.
GIGABYTE B650E EAGLE WIFI6E Connectivity
This motherboard accommodates 4 graphics cards with PCI Express 16x slots. The internal interface also includes a total of 3 popular M.2 slots. In terms of USB adaptors, it is built with 4 × USB 2.0, 3 × USB type 3.0 (3.1 gen1) and 2 × of the fast 3.1 (3.1 gen2) type ports.

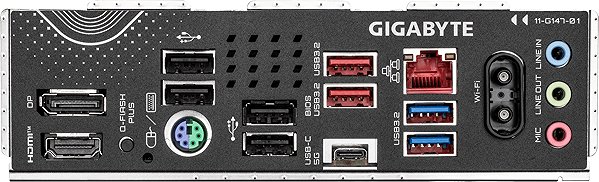

- External interfaces: Jack, PS/2, RJ-45 (LAN) 2.5Gbps, USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1, HDMI 2.1 and DisplayPort 1.4
- Internal interfaces: RGB LED Header, TPM header, USB 3.2 Gen 1 bracket, USB-C 3.2 Gen 1 bracket, USB 2.0 bracket, M.2 PCIe 5.0, PCIe 5.0 x16, PCIe 4.0 x4, Serial ATA III, M.2 PCIe 4.0, PCIe 3.0 x1 and ARGB LED Header
- Maximum supported RAM module clock speed: 8200 MHz
- Serial ATA III: 4 ×
Specifications
Socket and chipset
Format & functions
Memory
Advanced parameters
Connectors
Compatibility
| Code: | AGb650ee1 |
| Warranty: | 36 months |
| Links: | Producer's Website: |
