CUDY 16-Port Gigabit PoE+ Switch with 2 GbE and 2 Gigabit SFP
CUDY 16-Port Gigabit PoE+ Switch with 2 GbE and 2 Gigabit SFP
18-port gigabit PoE+ switch with two SFP uplinks for business networks
The CUDY gigabit switch with 16 PoE 1Gbps ports, two gigabit uplink ports and two SFP slots offers a compact and reliable solution for network expansion. It is ideal for demanding operations and corporate infrastructure management where you need to transmit both data and power over a single Ethernet cable. Thanks to the IEEE 802.3af/at standard, the CUDY switch delivers up to 30W per port with a total PoE power budget of up to 200W, allowing you to power IP cameras, Wi-Fi access points, VoIP phones or digital signage without the need for separate power adapters. Two additional gigabit uplink ports and two SFP slots also enable connection to the backbone network or interconnecting switches using optical modules. The switch features intelligent power management to help maintain stable operation across the entire network. Using the Default / VLAN / Extend mode switch, you can easily customise network behaviour to suit your specific installation. VLAN mode isolates individual ports for enhanced network security, while Extend mode lets you extend data transmission up to 250 metres, making it ideal for IP camera installations. The PoE Watchdog function can also automatically reboot a port if the connected device stops communicating. A robust metal construction with shielded ports and ESD and surge protection ensures stable operation even in more demanding installations. The CUDY switch is therefore the perfect choice for offices, schools, shopping centres, surveillance systems and internet service providers who need a reliable PoE switch with advanced management.
Key features of the CUDY 16-Port Gigabit PoE+ Switch with 2 GbE and 2 Gigabit SFP
- CUDY switch offers a total of 16 Ethernet 1Gbps ports with IEEE 802.3af/at support
- CUDY switch provides a total PoE power budget of up to 200W
- Two gigabit uplink ports ensure connection to the backbone network
- Two SFP uplink ports enable the connection of optical modules
- PoE Watchdog function automatically reboots the port in case of failure
- VLAN mode ensures port isolation for higher network security
- CUDY switch automatically reduces power consumption when ports are idle
- CUDY switch extends data transmission up to 250 metres in Extend mode
- Robust metal chassis with shielded ports features ESD and surge protection
- CUDY switch allows flexible desktop or rackmount installation
Reliable PoE power supply for non-stop operation
PoE+ power up to 30W per port
The Cudy switch supports IEEE 802.3af/at (PoE+) standards and delivers up to 30W of power per port, letting you power devices directly via the Ethernet cable. This is ideal for connecting Wi-Fi access points, IP cameras, VoIP phones or digital signage without the need for separate power adapters.
Automatic PoE port recovery
The PoE Watchdog function monitors the activity of individual ports to help keep connected devices up and running. If a connected device, such as an IP camera or Wi-Fi access point, stops transmitting data for approximately 5 minutes, the switch automatically reboots the corresponding PoE port to restore operation without requiring manual intervention.Intelligent PoE power management
The CUDY switch features intelligent power management to help maintain stable operation across the entire network. The PoE Max LED indicator alerts you when approximately 90% of the available PoE power budget is reached, while status LEDs for individual ports display active power to connected devices. If the available power budget is exceeded, the switch can automatically disconnect the last connected device to maintain stable operation for the rest of the network.
Preset modes
VLAN mode ensures a more secure network
The VLAN Mode feature on the CUDY switch enables efficient port isolation, which significantly increases network security. In this mode, downlink ports 1 to 16 can only communicate with the uplink ports, and not with each other. This makes it an ideal solution for offices, business premises or public areas where you need to isolate individual devices like computers, printers or IP cameras to prevent unwanted access or data sharing between them.
CUDY switch in Extend mode delivers reliable connection up to 250 metres
Thanks to Extend mode, the CUDY switch lets you extend the transmission range of the ports up to 250 metres, which significantly simplifies installation in larger spaces. This is the ideal solution for locations where you need to connect remote IP cameras, access points or other devices without having to use additional active network elements.
Durable design for stable network operation
Stable operation even in demanding network installations
The CUDY switch offers enhanced EMC protection to help minimise downtime caused by electrostatic discharges or power surges. It features ESD protection of up to 6kV on contact and 8kV in the air, while surge protection reaches 2kV (DM) and 4kV (CM) for the power supply and up to 4kV on the RJ45 ports. This level of protection makes the PoE switch suitable for more demanding environments where maximum reliability of the network infrastructure is essential.
Durable construction with shielded ports
The switch is equipped with shielded Ethernet ports made of nickel-plated copper alloy, which help minimise interference and ensure stable data transmission. This allows you to reliably run your network infrastructure even in environments with higher electromagnetic interference. In addition, the robust SPCC metal chassis ensures high durability and provides stable operation even during long-term deployment in professional network installations.
Versatile use of the CUDY switch
Combining gigabit ports, PoE power and advanced management, the CUDY switch is suitable for a wide range of deployments. You can use it when building camera systems, office networks, Wi-Fi infrastructure in schools or campuses, as well as for connecting access systems and digital signage. With PoE power and reliable operation, it helps you easily build a stable and clearly managed network infrastructure.
Ready for 19" rack installation

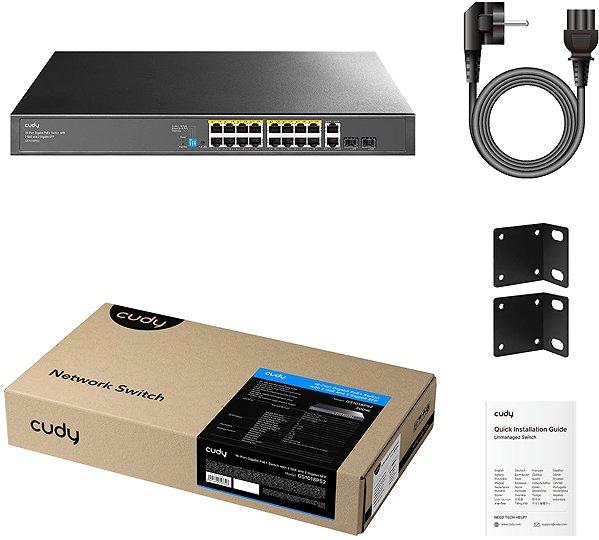

The CUDY switch comes with mounting brackets that allow for easy installation into a standard 19" rack. This lets you easily integrate the switch into server cabinets or professional network distribution boards to maintain a clean and well-organised network infrastructure.
Specifications
Power outlet type
Type
Functions
Ports
Number of LAN ports
PoE properties
Features
Speed
Dimensions
Material
Operating temperature
Weight
| Code: | CUD25k79 |
| Warranty: | 24 months |
| Links: | Producer's Website: |
