Cooler Master MasterBox MB510L Blue Trim

PC Case Cooler Master MasterBox MB510L Blue Trim Lateral view

This Cooler Master MasterBox MB510L Blue Trim Midi Tower PC case delivers a stylish construction highlighted by a striking black colour tone. The paint is applied on a steel construction. The Midi Tower PC case is designed for powerful PCs and yet it's small enough to fit under you desk. Although it's a smaller PC case, it can hold a sufficient amount of gaming and professional hardware components. Discerning users will also enjoy the option to improve dissipation of extreme heat via large coolers and fans that will slot in without an issue. The desktop control panel, which provides the ability to control and connect various peripherals, is located on the top of the case. You'll be able to insert a ATX, mATX (Micro ATX) and mITX (Mini ITX) type motherboard into the Cooler Master MasterBox MB510L Blue Trim PC case. The front side is perforated, which allows for better ventilation inside.

Cooler Master MasterBox MB510L Blue Trim PC Case Key Features

  • Midi Tower PC case meant for powerful desktop PCs
  • Can accommodate modern components with reliable cooling
  • Black steel sophisticated design complete with a transparent side panel
  • Cooler Master MasterBox MB510L Blue Trim includes 6 ventilator slots
  • PC case with a perforated front
  • Front panel location: top

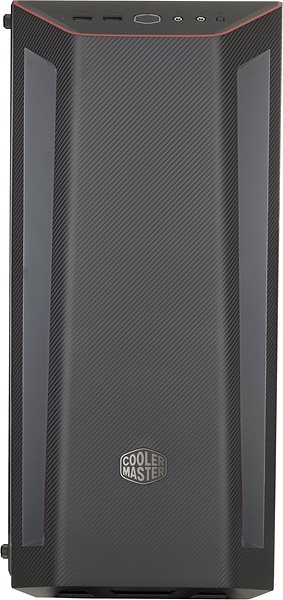

PC Case Cooler Master MasterBox MB510L Blue Trim Screen

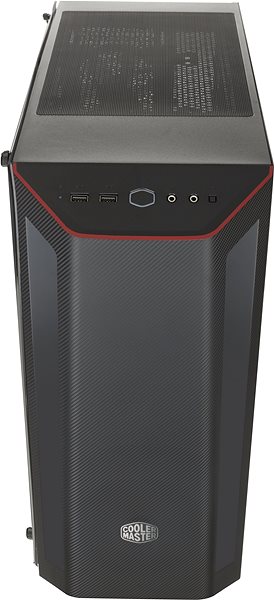

PC Case Cooler Master MasterBox MB510L Blue Trim Connectivity (ports)

Cooler Master MasterBox MB510L Blue Trim Computer Case Hardware

6 x 2.5" solid state disk slots. All the other essential components can be installed on the motherboard. On the main control panel there are connectors for USB 3.2 Gen 1, headphones and microphone. The power supply of the Cooler Master PC case is placed at the bottom, which means that it is not affected by higher temperatures, which mainly occur in the upper part of the case. The dust filters keep the PC case clean and prevent small particles from getting into the case.

Specifications

Usage and size

Size Midi Tower

Internal structure

Motherboard form factor ATX, mATX (Micro ATX), mITX (Mini ITX)
Number of internal 2.5" slots 6×
Number of internal 2.5"/3.5" slots 2 ×
Max. processor heat sink height 165 mm
Max. graphics card length 410 mm

External structure

Front panel location top
Front panel connectors USB 3.2 Gen 1, 3.5mm jack (headphones), 3.5mm jack (microphone)
Sidewalls Transparent
Side panel material Plastic
Additional equipment Perforated front

PSU

Power supply Without power supply
Supported PSU format ATX

Cooling system

Front fan size 2x140mm, 3x120mm
Rear fan size 1x120mm
Top fan size 2x120mm, 2x140mm
Number of fan positions 6×
Number of mounted ventilators 1×120mm
Supported radiator size on top 120mm, 240mm
Supported radiator size from the front 120mm, 140mm, 240mm, 280mm, 360mm

Backlight

Backlight colour No backlighting

Material

Wardrobe material Steel

Dimensions

Width 217 mm (21.7 cm)
Height 468 mm (46.8 cm)
Depth 496 mm (49.6 cm)
Code:  CCmbmb510blt
