CONNECT IT ProMic CMI-9010-BK, Black
CONNECT IT ProMic CMI-9010-BK, Black
The CONNECT IT ProMic CMI-9010-BK is a condenser microphone designed for studio use, streaming, voice communication and home recording. Its design is intended for mounting on a desk using a telescopic arm with a thread and a spring mechanism. The microphone uses a cardioid directional pattern to focus on the voice and reduce ambient noise. The set includes a full range of accessories, including an arm, pop filter, shock mount and protective filter.
Tripod, desktop
Microphone type
Condenser
Microphone principle
Directional
Directional characteristics
20–16,000 Hz
Frequency range
Key Features of the CONNECT IT ProMic CMI-9010-BK Microphone, Black
- CONNECT IT ProMic CMI-9010-BK USB-powered condenser microphone
- Cardioid directional pattern
- Frequency range 20Hz–16kHz
- Telescopic arm with a length of up to 700mm
- Shock mount microphone holder (spider)
- Pop filter with a diameter of 150mm
- Foam windscreen filter
- 2.5m long cable
- Windows / macOS compatibility
- Complete recording set
Suitable for Studio Use
Construction and Mounting
The CONNECT IT ProMic CMI-9010-BK microphone is designed for mounting on a desk with a maximum thickness of 4.5cm. The telescopic arm uses a parallelogram mechanism with two springs and three joints to adjust the height and angle. The position is fixed using a tightening screw. The design allows for stable positioning of the microphone without unwanted vibrations. The maximum length of the arm is 700mm.
Sound Recording and Directionality
The CONNECT IT ProMic CMI-9010-BK microphone uses a cardioid directional pattern to capture sound from the front. The frequency range of 20Hz to 16kHz covers the voice band for both communication and recording. The sensitivity is -38dB ± 2dB and the impedance is 150 Ohm. The maximum sound pressure level reaches 132dB. The signal-to-noise ratio is 78dB.
Sound Filtration and Protection
The set includes a 150mm pop filter, which reduces air blasts when pronouncing plosive sounds. The double-layered, sound-permeable fabric with a protective air gap improves recording quality. The foam windscreen filter protects the microphone from dust and airflow. A metal grille with internal PUR foam protects the microphone's pickup element. The combination of filters extends the life of the device and stabilises the recording.
Power and Compatibility
The CONNECT IT ProMic CMI-9010-BK microphone is powered via a USB connector with a voltage of 5V / 100mA. The connection is compatible with both Windows and macOS systems. The 2.5m long cable allows for flexible placement of the microphone on your desk. The design is suitable for home and professional use.
Technical Specifications
- Connection: USB
- Sensitivity: -38dB ± 2dB
- Impedance: 150 Ohm
- Maximum SPL: 132dB
- Signal-to-noise ratio: 78dB
- Power: USB (5V / 100mA)
- Cable length: 2.5m
- Microphone dimensions: 152 × 47 × 44mm
- Maximum arm length: 700mm
- Microphone weight: 208g
- Total set weight: 1060g
- Colour: black

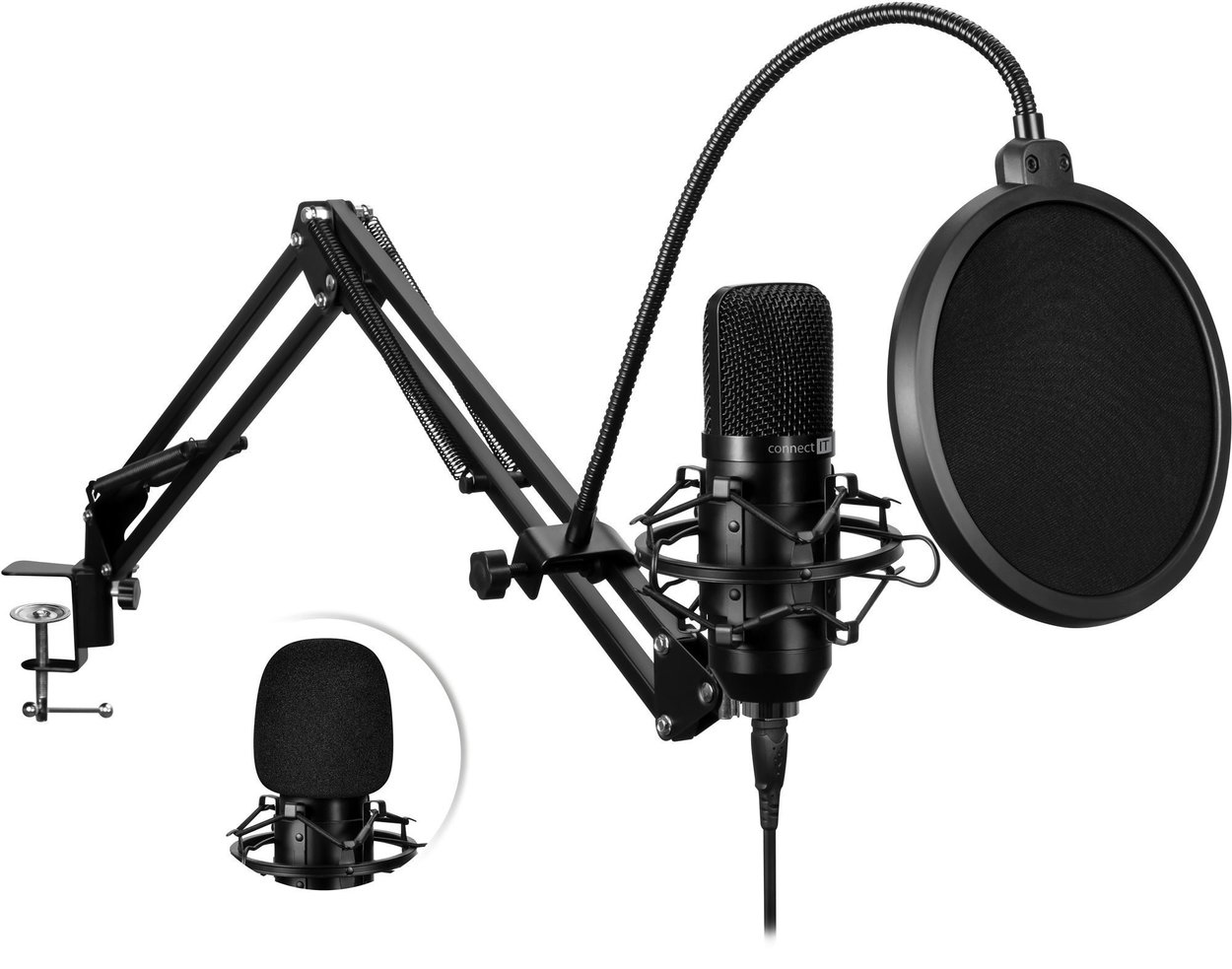

Package contents
- CONNECT IT ProMic CMI-9010-BK microphone
- Desk arm
- Shock mount (spider)
- Pop filter
- Protective windscreen filter
- USB cable
- User manual
Microphone principle
A dynamic microphone is suitable for open performances, live broadcasting, music production, etc. It uses a magnet and a moving coil to capture sound.
A condenser microphone is mainly used for studio purposes. It has higher sensitivity and lower noise. It must be powered separately.
Frequency range
The frequency range indicates the range of frequencies that the microphone records. The wider the range, the more sounds it can capture.
Low frequencies (e.g., 20–200Hz): Bass, the deepest tones of instruments (double bass, kick drum) and male voices.
Mid-range frequencies (e.g., 200–3000Hz): The body of instruments, the fundamental of the voice, where the ear is most sensitive, important for speech intelligibility.
High frequencies (e.g., 3000–14000Hz): Treble, details, sibilance and the "shine" of the sound.
Air band (above 14000Hz): Gives recordings a sense of expensive, super high-quality sound and space.
Sensitivity
Microphone sensitivity is the ratio of output voltage to acoustic pressure. It expresses how loud a signal the microphone produces at a given acoustic pressure; higher sensitivity means a stronger voltage and is suitable for quiet studios, while lower sensitivity is better for noisy environments as it is less likely to unnecessarily amplify ambient noise.
