Capture 15.6" POS system / N95 / 8GB RAM / 256GB SSD / with Win11 IoT Entry / with WiFi
Capture 15.6" POS system / N95 / 8GB RAM / 256GB SSD / with Win11 IoT Entry / with WiFi

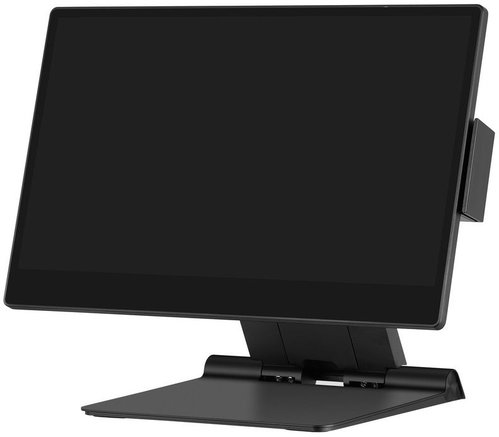

Capture M6 Windows POS is a compact yet powerful POS terminal designed to simplify check-in, billing and order management. With its capacitive touchscreen, fanless design and Windows compatibility, the M6 is ideal for retail stores, cafes and service counters looking for reliable performance in a sleek design. The system can be configured for different applications, with options like POS terminals, touch monitors, touch panel computers, distributed assemblies, pole mount and PC boxes. The system allows customization by combining different modules. This includes screen modules (15", 15,6", 18,5" a 21,5"), system box modules (Windows and Android with different processors) and peripheral modules.
Key features of the Capture 15.6" POS system / N95 / 8GB RAM / 256GB SSD / with Win11 IoT Entry / with WiFi
- Compact POS terminal for retail, cafes and service counters
- Capacitive touch screen and fanless design
- Windows operating system (or Android depending on configuration)
- Available screen sizes - 15", 15,6", 18.5" and 21.5" - all with FHD IPS LCD technology
- Intel Core (N95, i3, i5) or Rockchip (RK3568, RK3588, RK3576) processors
- Modular system - combination of screen, system and peripheral modules
- Configurable for different applications: POS terminals, touch monitors, panel computers, rack mounting and more
- Support for a wide range of peripherals: Fingerprint readers, RFID, iButton, magnetic cards, secondary displays
- Suitable for simplifying check-in, invoicing and order management
Modular solutions without compromise
A wide range of peripherals are supported, including fingerprint readers, RFID readers, iButton readers, magnetic card readers and various secondary displays. Several screen sizes available (15", 15,6", 18,5" a 21,5"), all with FHD IPS LCD technology. The system box modules offer a choice between Windows and Android operating systems, with different Intel Core processors (N95, i3, i5) and Rockchip (RK3568, RK3588, RK3576) depending on the model and configuration.
Technical specifications:
Processors: Windows Intel N95
Memory: 8 GB standard, DDR4 3200 MHz (max. 32 GB)
Storage 256 GB (M.2 2280, max. 1 TB)
Operating system: Windows 11
COM ports: 2 × RS232
USB: 4 × USB 2.0, 4 × USB 3.0 LAN 1 × RJ45, Gigabit Ethernet
WiFi/Bluetooth: Optional 802.11ax, BT 5.3
The cash drawer: 1 × RJ11
Video: 1 × HDMI
Audio 1 × Combined Line-out & Mic-in
Display: 15.6" FHD IPS LCD
Resolution: 1920 × 1080 (16:9)
Yeah: 250 cd/m² (15.6")
Touch: Multi-point capacitive touch screen
Speakers: 2 × 2 W (stereo)
Periphery: Fingerprint reader (USB), Dallas i-Button reader (USB), Magnetic card reader (USB, 1/2/3 track)
Frame material: Aluminium alloy (die-cast)
VESA compatibility: Support 75 × 75 mm and 100 × 100 mm
Specifications
Connection
Display
| Code: | REOcapt57 |
| Warranty: | 36 months |
| Links: | Producer's Website: |
