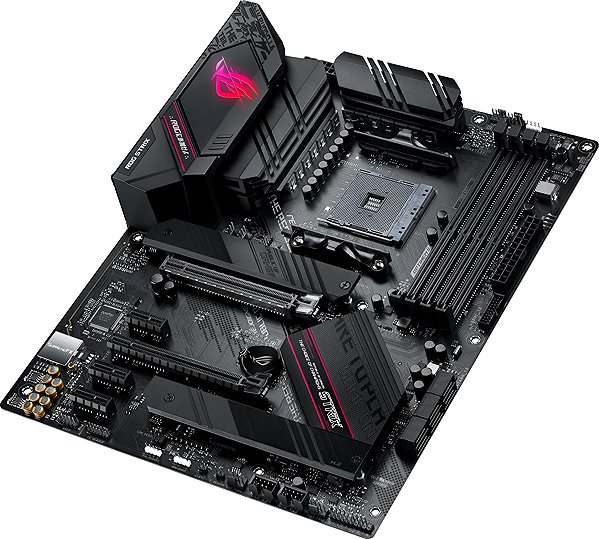

ASUS ROG STRIX B550-F GAMING WIFI II

The ASUS motherboard is built using the AMD B550 chipset, and it has the AMD AM4 socket to accommodate the processor. Classically, it has a sound card which handles 8,0 channels. You can use a network connection module with the practical Wi-Fi connection support. It is a large motherboard for extremely powerful systems, which require complex cooling. For this particular motherboard model, it is neccessary to use a compatible ATX format PC case.

ASUS ROG STRIX B550-F GAMING WIFI II Motherboard Key Features

• AMD AM4 socket and the AMD B550 chipset
• ASUS ROG STRIX B550-F GAMING WIFI II format: ATX
• Integrated sound card for 8,0 channels
• DDR4 RAM type with DIMM design
• The motherboard can hold 4 × dual-channel memory modules

ASUS ROG STRIX B550-F GAMING WIFI II Motherboard Connectivity

RAM is extremely important, so this ASUS motherboard has 4 RAM slots. You can pair it with DDR4 type DIMM RAM. You can hook them up in dual-channel mode. The motherboard supports models with a clock speed of up to 5100 MHz.

ASUS ROG STRIX B550-F GAMING WIFI II Connectivity

This motherboard is designed for 2 graphics cards with PCI Express 16x slots. The internal interface also has a total of 2 popular M.2 slots. In terms of USB adaptors, it's got 2 × USB 2.0, 4 × USB type 3.0 (3.1 gen1) and 2 × of the fast 3.1 (3.1 gen2) type ports. The motherboard has an eyecatching RGB LED Header for exquisite light effects.

• The motherboard comes with an integrated Realtek S1220A sound card
• External communication interfaces: Jack, RJ-45 (LAN) 2.5Gbps, S/PDIF , USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2, HDMI 2.1 and DisplayPort 1.2
• Supported internal interfaces: M2 Socket, RGB LED Header, ThunderBolt, USB 2.0 bracket, USB 3.2 Gen 1 (USB 3.0) bracket, Serial ATA III and M.2 PCIe 4.0
• The M.2 socket will come in handy when you are planning to install modern SSDs, where SATA connection is just too slow
• Maximum supported RAM clock speed: 5100 MHz
• SATA III: 6 ×
