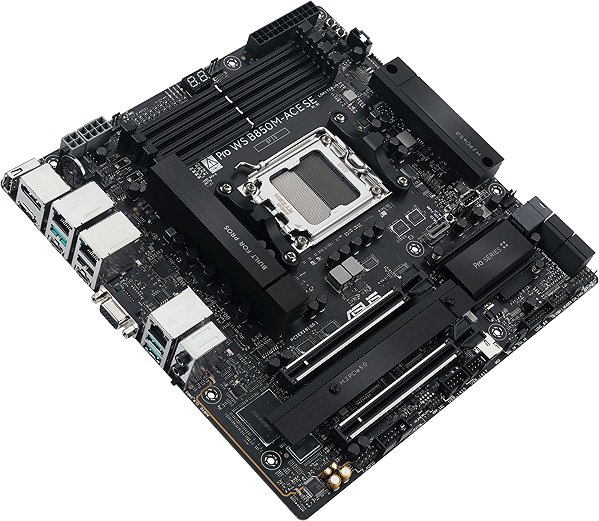

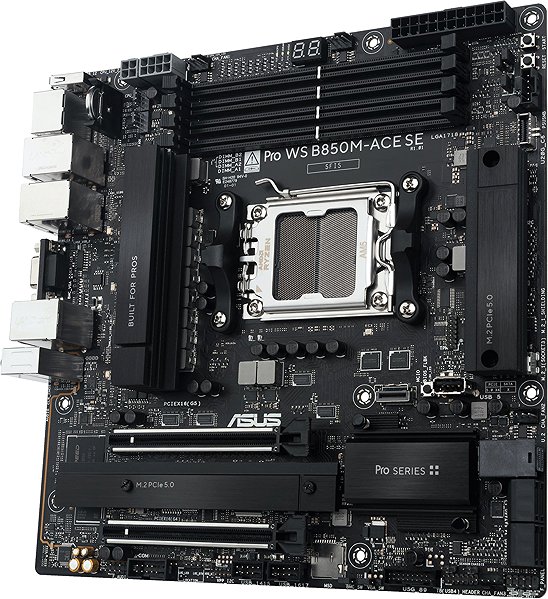

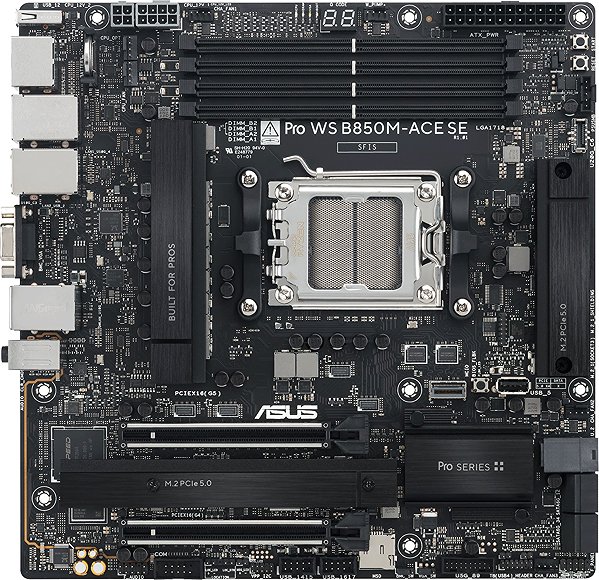

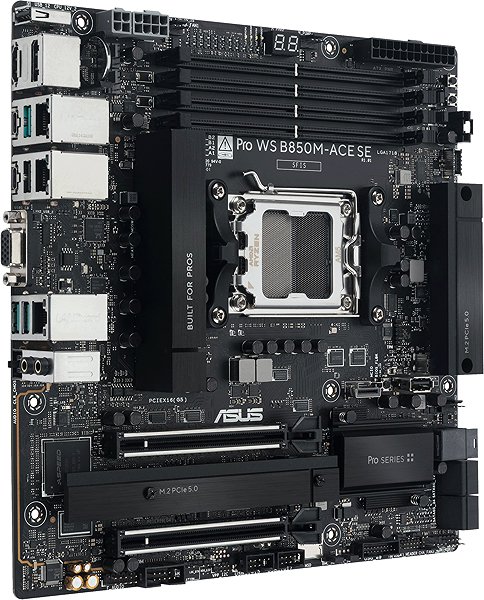

ASUS PRO WS B850M-ACE SE
ASUS PRO WS B850M-ACE SE
This ASUS motherboard is based on the AMD B850 chipset with the AMD AM5 socket to accommodate the CPU. As you would expect,, it is also equipped with a sound card for 8 channels. It skilfully combines compact dimensions with an adequate number of connectors to create an ideal home PC. If you want to build a PC with this motherboard model, you'll need a compatible mATX (Micro ATX) format PC case.
ASUS PRO WS B850M-ACE SE Motherboard Key Features
- AMD AM5 socket and AMD B850 chipset
- ASUS PRO WS B850M-ACE SE size: mATX (Micro ATX)
- Integrated audio card for 8 channels
- DDR5 RAM type with DIMM design
- The motherboard can accommodate 4 × dual-channel memory modules
ASUS PRO WS B850M-ACE SE Motherboard Connectivity
Computer memory is absolutely essential, so this ASUS motherboard has 4 RAM slots. It's compatible with DDR5 type DIMM memory . You can link them in dual-channel mode. This motherboard is compatible with models with a clock speed of up to 8000 MHz.
ASUS PRO WS B850M-ACE SE Connectivity
The motherboard is ready to accommodate 2 graphics cards with PCI Express 16x slots. The internal interface is also equipped a total of 2 popular M.2 slots.

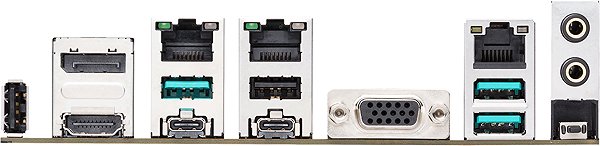

- Supported external communication interfaces: Jack, RJ-45 (LAN) 1Gbps, RJ-45 (LAN) 10Gbps, RJ-45 (LAN) 2.5Gbps, USB 2.0, USB 3.2 Gen 2, VGA (D-Sub), USB-C 3.2 Gen 2, HDMI 2.1 and DisplayPort 1.4
- Supported internal interfaces: COM header, Thunderbolt header, TPM header, U.2 port, USB 3.2 Gen 1 bracket, USB-C 3.2 Gen 2x2 bracket, USB 2.0 bracket, M.2 PCIe 5.0, PCIe 5.0 x16, PCIe 4.0 x4, Serial ATA III and M.2 PCIe 4.0
- Maximum supported RAM module clock speed: 8000 MHz
- PCI: 3 ×
- Serial ATA III: 4 ×
Specifications
Socket and chipset
Format & functions
Memory
Advanced parameters
Connectors
Series
Compatibility
Colour
| Code: | ACb850w1 |
| Warranty: | 36 months |
