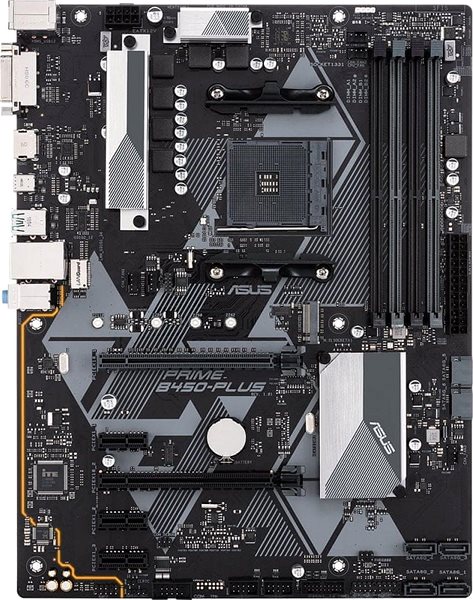

ASUS PRIME B450-PLUS
ASUS PRIME B450-PLUS
The ASUS motherboard is based on the AMD B450 chipset, and it uses the AMD AM4 socket to accommodate the CPU. And, of course, it also has a sound card which can handle 8 channels. The entire motherboard is controlled by the modern UEFI BIOS. It is a very large motherboard for extremely powerful systems with multiple hardware cards. If you want to use this motherboard, you will require a compatible ATX format case.
ASUS PRIME B450-PLUS Motherboard Key Features
- AMD AM4 socket and uses AMD B450 chipset
- ASUS PRIME B450-PLUS format: ATX
- Integrated audio card for 8 channels
- DDR4 RAM type with DIMM design
- The motherboard can accommodate 4 × dual-channel memory modules
- Has AMD CrossFireX for connecting multiple graphics cards
- RAID controller for better security
ASUS PRIME B450-PLUS Motherboard Connectivity
RAM is extremely important, so this ASUS motherboard has 4 RAM slots. You can pair it with DDR4 type DIMM RAM. You can attach them in dual-channel mode. The motherboard supports models with a clock speed of up to 4400 MHz. The ASUS PRIME B450-PLUS motherboard enables seamless connection of multiple graphics cards, with AMD CrossFireX providing stable and properly effective performance. The device also sports a RAID controller for data security via independent disk management.
ASUS PRIME B450-PLUS Connectivity
The motherboard is designed for 2 graphics cards with PCI Express 16x slots. The internal interface also has a total of 1 popular M.2 connectors. In terms of USB adaptors, it's got 2 × USB 2.0, 3 × USB type 3.0 (3.1 gen1) and 2 × of the fast 3.1 (3.1 gen2) type ports. The motherboard has an eyecatching RGB LED Header for fans of striking lighting effects.
ASUS Motherboard Primary Usage
The ASUS PRIME B450-PLUS motherboard's functions are well indicated by the AMD B450 chipset. B450 chipsets are good for both regular PCs for ordinary users and for high-performance gaming rigs. At the same time, gamers are going to love the support for the latest processors from AMD overclocking possibilities.
What Else Can the ASUS PRIME B450-PLUS Motherboard Do?
- The motherboard has a built-in Realtek ALC887 sound card
- Other points in this motherboard's favour include features like AMD CrossFireX and RAID controller
- Supported external communication interfaces: DVI, HDMI, Jack, PS/2, RJ-45 (LAN) 1Gbps, USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2 and USB-C
- Internal interfaces: COM header, M2 Socket, RGB LED Header, S/PDIF header, Serial ATA III, USB 2.0 header and USB 3.2 Gen 1 header
- The M.2 interface will be very welcome if you are connecting lightning-fast SSDs
- The motherboard supports RAM modules with a clock speed of up to 4400 MHz
- Serial ATA III: 6 ×
Specifications
Socket and chipset
Format & functions
Memory
Advanced parameters
Connectors
Series
| Code: | ACB45d |
| Warranty: | 36 months |
| Product Number: | 90MB0YN0-M0EAY0 |
| Links: | Producer's Website: |
