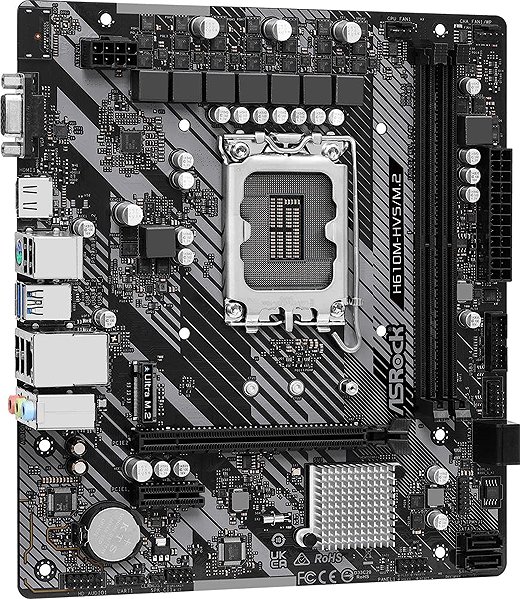

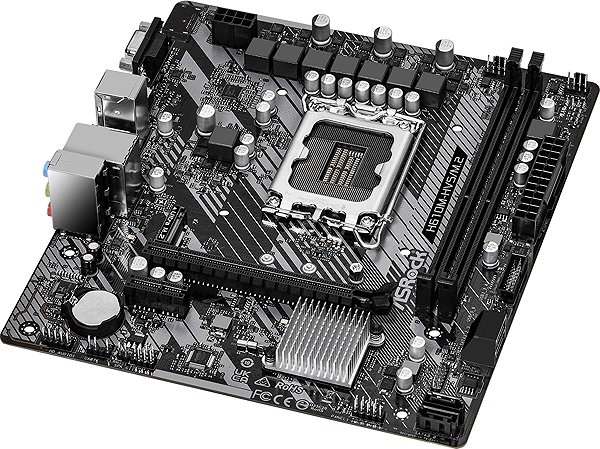

ASROCK H610M-HVS/M.2 R2.0
ASROCK H610M-HVS/M.2 R2.0
The ASROCK motherboard is based on the Intel H610 chipset, and it has the Intel 1700 socket for the processor. As is the standard, it also has a sound card made for 8,0 channels. It combines compact dimensions with an adequate number of connectors to create a great home PC setup. For this particular model, you will need a compatible mATX (Micro ATX) format PC case.
ASROCK H610M-HVS/M.2 R2.0 Motherboard Key Features
- Intel 1700 socket and uses Intel H610 chipset
- ASROCK H610M-HVS/M.2 R2.0 size: mATX (Micro ATX)
- Integrated sound card for 8,0 channels
- DDR4 RAM type with DIMM design
- The motherboard can hold 2 × dual-channel memory modules
ASROCK H610M-HVS/M.2 R2.0 Motherboard Connectivity
Computer RAM is extremely important, so this ASROCK motherboard has a total of 2 RAM slots. It's designed for DDR4 type DIMM operating memory. You can hook them up in dual-channel mode. The motherboard supports modules with a clock speed of up to 3200 MHz.
ASROCK H610M-HVS/M.2 R2.0 Connectivity
The motherboard is made for graphics cards with a PCI Express 16x slot. The internal interface is also equipped a total of 1 popular M.2 slots. You'll also find that it has TPM, meaning better security.
- The motherboard has a built-in Realtek ALC897 sound card
- External interfaces: Jack, PS/2, RJ-45 (LAN) 1Gbps, USB 2.0, USB 3.2 Gen 1, VGA (D-Sub) and HDMI 2.1
- Internal interfaces: TPM header, USB 2.0 header, USB 3.2 Gen 1 header, M.2 PCIe 3.0, PCIe 4.0 x16 and Serial ATA III
- The motherboard supports RAM modules with a clock speed of up to 3200 MHz
- SATA III: 4 ×
Specifications
Socket and chipset
Format & functions
Memory
Advanced parameters
Connectors
Series
Compatibility
Colour
| Code: | ASh610h1a2 |
| Warranty: | 36 months |
| Links: | Producer's Website: |
