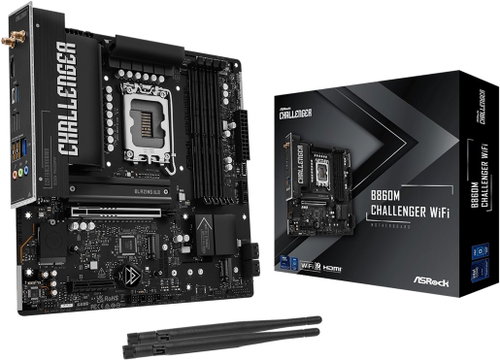

ASROCK B860M Challenger WiFi

51,290 Ft

ASROCK B860M Challenger WiFi

Motherboard ASROCK B860M Challenger WiFi ...

This ASROCK motherboard is built with the Intel B860 chipset, and it has the Intel 1851 socket for the processor. As you would expect,, it has a sound card which handles 8 channels. You will be able to use the network connection module with the practical Wi-Fi support. It combines compact dimensions with an adequate number of connectors for the optimal home computer setup. If you want to choose this model, it is neccessary to use a compatible mATX (Micro ATX) format computer case.

ASROCK B860M Challenger WiFi Motherboard Key Features

  • Intel 1851 socket and the Intel B860 chipset
  • ASROCK B860M Challenger WiFi format: mATX (Micro ATX)
  • Integrated sound card for 8 channels
  • DDR5 computer RAM type with DIMM design
  • The motherboard can hold 4 × dual-channel memory modules
Motherboard ASROCK B860M Challenger WiFi ...
Motherboard ASROCK B860M Challenger WiFi ...

ASROCK B860M Challenger WiFi Motherboard Connectivity

Computer RAM is absolutely crucial, so this ASROCK motherboard is equipped with 4 RAM slots. It's compatible with DDR5 type DIMM RAM. You can attach them in dual-channel mode. It supports models with a clock speed of up to 8666 MHz.

ASROCK B860M Challenger WiFi Connectivity

The motherboard supports graphics cards with a PCI Express 16x slot. The internal interface also includes a total of 3 popular M.2 connectors.

Motherboard ASROCK B860M Challenger WiFi ...
  • The motherboard has a built-in Realtek ALC897 sound card
  • External communication interfaces: Jack, RJ-45 (LAN) 2.5Gbps, USB 2.0, USB 3.2 Gen 1, USB-C 3.2 Gen 1 and HDMI 2.1
  • Supported internal interfaces: RGB LED Header, TPM header, USB 3.2 Gen 1 bracket, USB-C 3.2 Gen 1 bracket, USB 2.0 bracket, M.2 PCIe 5.0, PCIe 5.0 x16, PCIe 4.0 x4, Serial ATA III, M.2 PCIe 4.0 and ARGB LED Header
  • The motherboard supports RAM modules with a clock speed of up to 8666 MHz
  • Serial ATA III: 4 ×

Specifications

Socket and chipset

Socket Intel 1851
Chipset Intel B860

Format & functions

Motherboard form factor mATX (Micro ATX)
Basic functions Bluetooth, Integrated network card, Integrated sound card, PCI Express 5.0, For CPU with integrated GPU, Wi-Fi

Memory

Memory type DDR5
Number of RAM slots 4 ×
Max. frequency (OC) 8,666 MHz
Design DIMM
Connection Mode dual-channel

Advanced parameters

Sound card type Realtek ALC897
Number of sound card channels 8

Connectors

External Jack, RJ-45 (LAN) 2.5Gbps, USB 2.0, USB 3.2 Gen 1, USB-C 3.2 Gen 1, HDMI 2.1
Internal RGB LED Header, TPM header, USB 3.2 Gen 1 bracket, USB-C 3.2 Gen 1 bracket, USB 2.0 bracket, M.2 PCIe 5.0, PCIe 5.0 x16, PCIe 4.0 x4, Serial ATA III, ARGB LED Header, M.2 PCIe 4.0
PCI express x16 1×
PCI express x4 1×
USB 2.0 2×
USB 3.2 Gen 1 (USB 3.0) 4×
M.2 slots 3×
Serial ATA III 4×

Compatibility

Compatible processor generation Core Ultra Series 2

Colour

Colour Black
Code:  ASb860cw2
Warranty: 36 months
Links: Producer's Website:
